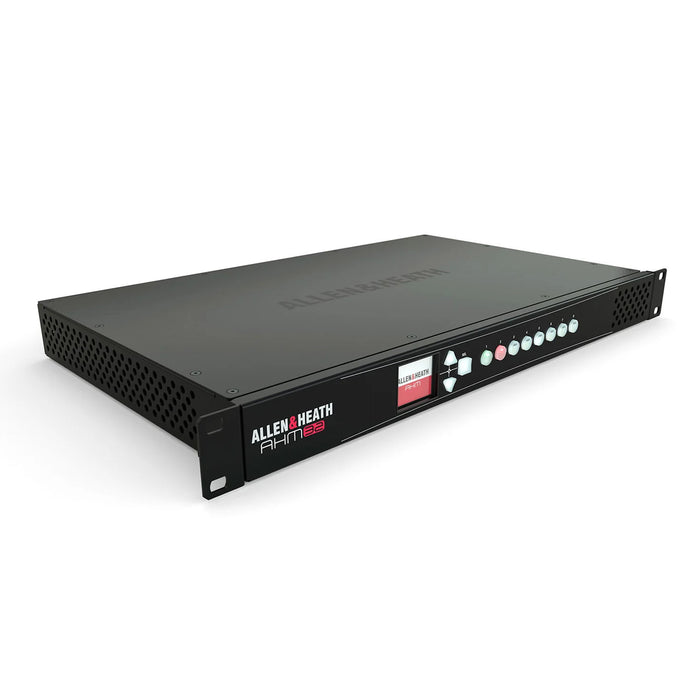

Allen & Heath AHM-32 - 32×32 Audio Matrix Processor
Allen & Heath AHM-32
With 32 zone outputs, echo cancelling and audio networking options, the Allen & Heath AHM-32 is ideal for multi-room installations in hospitality, corporate and education environments.
32×32 Processing Matrix
Flexible routing with configurable processing on all 32 outputs.
12×12 Local Analogue I/O

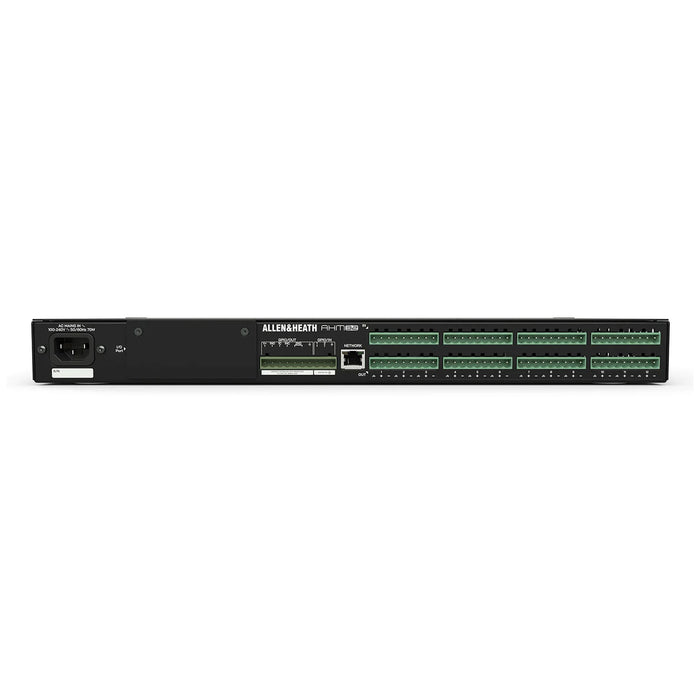

12x mic/line inputs and 12x relay protected line outputs on Phoenix connectors.
Audio Networking I/O Port
Card options include Dante, MADI, Waves and SLink.
Processing
Sound Management Tools
• 4x Automatic Mic Mixers
• ANC (Ambient Noise Compensation)
• Priority Ducking
• 8-band PEQ, dynamics and delay on every input and zone
• Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters
• NTP support
• EQ Ganging (Relative, Absolute, and Mirrored Controls)
Hardware
Always In Control
In addition to remote controllers, GPIO and 3rd party integration, AHM-32 has a front panel screen and 8x programmable SoftKeys for intuitive volume control, source select, preset recall and more.
Features
- 32×32 Processing Matrix
- 12×12 Local Analogue I/O
- I/O Port for Audio Networking (Up to 128×128)
- Dante 96kHz Option Card (AES67 and DDM ready)
- SLink 128×128 Option Card for Audio Expansion
- 32 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing
- 96kHz FPGA Core With Ultra-low Latency

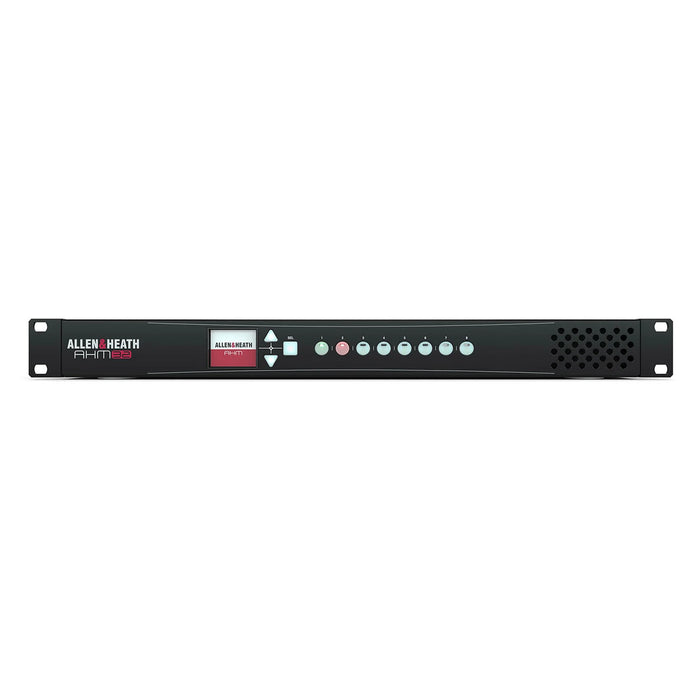

- Front Panel Screen and Navigation
- 8x SoftKeys
- Compatible With IP1, IP6, IP8 Remote Controllers
- 2×2 Local GPIO Plus Networkable GPIO Interface
- TCP/IP Protocol for Third Party Integration
- Crestron, AMX and Extron Drivers
- Mac / Windows System Manager Software
- Custom Control app and Editor for BYOD
- 16 User Profiles
- Integrated Stereo Playback
- Event Scheduler
