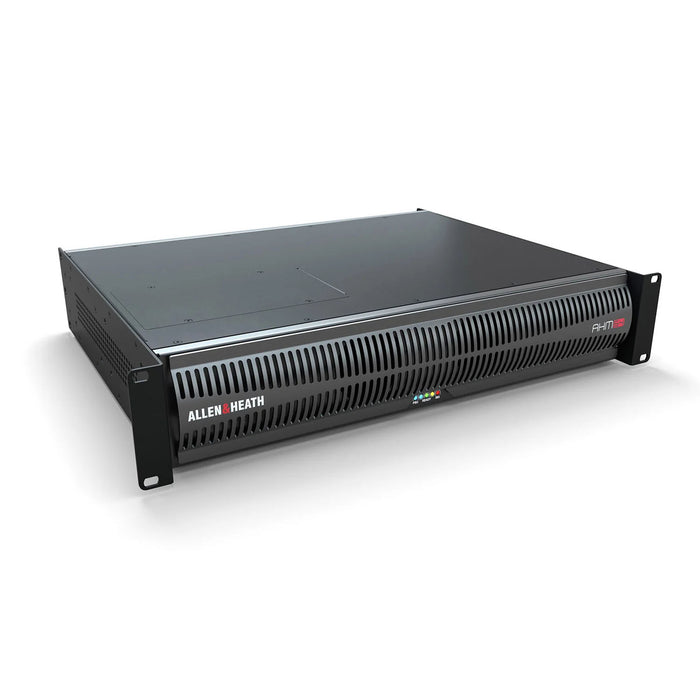

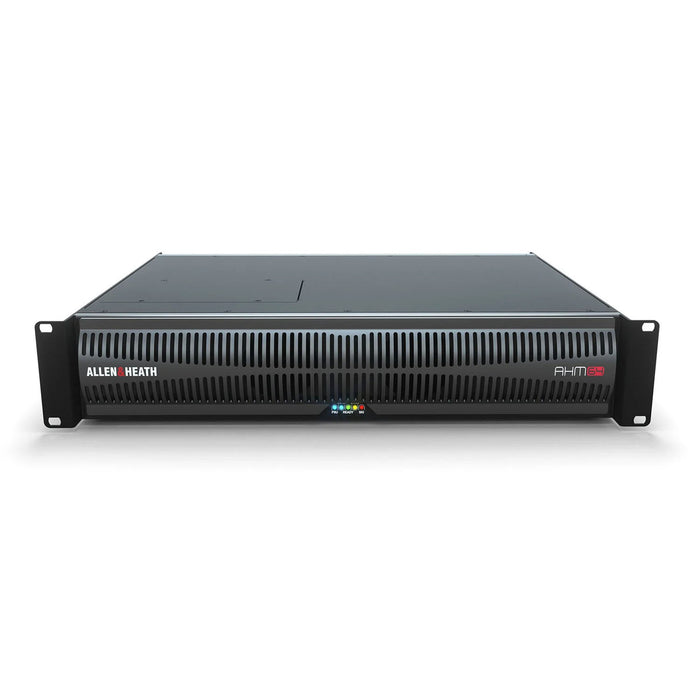

Allen & Heath AHM-64 - 64×64 Audio Matrix Processor
Allen & Heath AHM-32
The most powerful matrix processor in the range, the Allen & Heath AHM-64 can scale to large campus installations with up to 64 zones, 96 controllers and hundreds of system I/O.
64×64 Processing Matrix
Flexible routing with configurable processing on all 64 outputs.

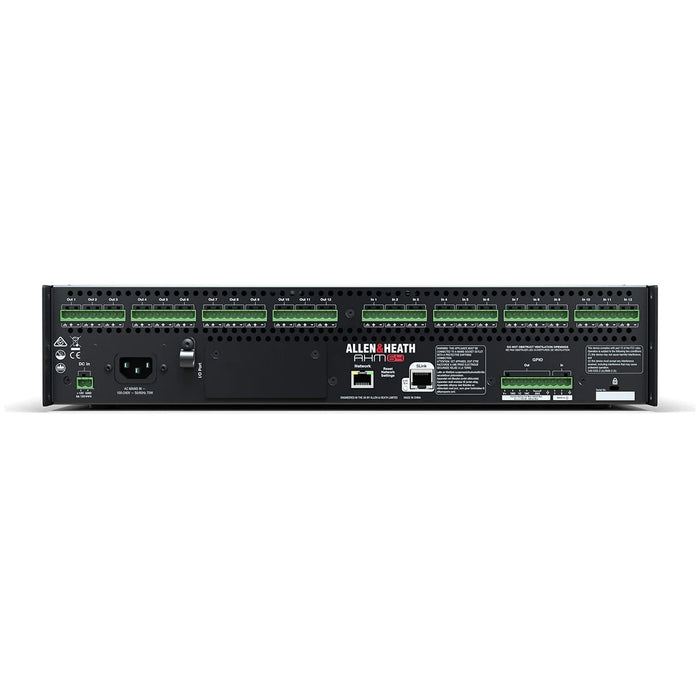

12×12 Local Analogue I/O
12x mic/line inputs and 12x relay protected line outputs on Phoenix connectors.
Audio Networking I/O Port
Card options include Dante, MADI, Waves and SLink.
Processing
Sound Management Tools
• 8x Automatic Mic Mixers
• ANC (Ambient Noise Compensation)
• Priority Ducking
• 8-band PEQ, Dynamics and Delay on every Input and Zone
• Speaker processing with x-over filter, delay, limiter, PEQ and All-Pass Filters
• NTP support
• EQ Ganging (Relative, Absolute, and Mirrored Controls)
• Processing expansion module
Features
- 64×64 Processing Matrix
- 12×12 Local Analogue I/O
- I/O Port for Audio Networking (Up to 128×128)
- Dante 96kHz Option Card (AES67 and DDM ready)
- 128×128 Built-in SLink Port for Audio Expansion
- 64 Configurable Processing Outputs – Mono / Stereo Zones or Speaker Processing
- 96kHz FPGA Core With Ultra-low Latency
- Compatible With IP1, IP6, IP8 Remote Controllers
- 2×2 Local GPIO Plus Networkable GPIO Interface
- TCP/IP Protocol for Third Party Integration
- Crestron, AMX and Extron Drivers
- Mac / Windows System Manager Software
- Custom Control app and Editor for BYOD
- 32 User Profiles
- Integrated Stereo Playback
- Event Scheduler
- DC backup power supply
