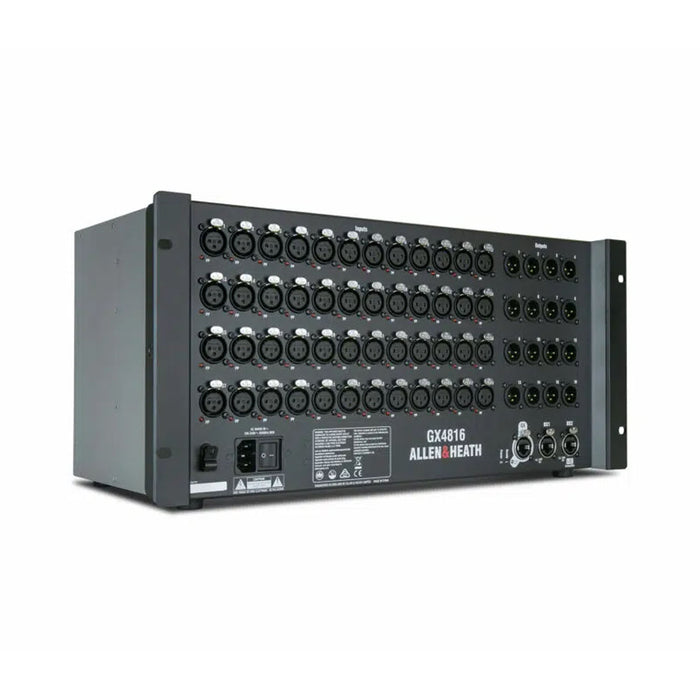

Allen & Heath GX4816 - 48 In, 16 Out Expander for SQ and dLive
Allen & Heath GX4816
The Allen & Heath GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for Qu, SQ, Avantis and dLive mixing systems, and for AHM audio matrix processors.
48 Mic Preamps
+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.
16 Line Outs
Balanced, relay protected line outputs on XLR.
DX Ports
A pair of DX ports enable connection of additional DX expanders or the ME Personal Monitoring System (not on dLive or AHM)
Plug-and-Play
No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.
Massively Expand Your System I/O!
Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion.
Put It Where You Need It
The GX4816 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 5U 19″ space.
ALlen & Heath GX4816 Features
- 96kHz audio
- 48 Mic Preamps on XLR
- Phantom Power LED per Input
- 16 XLR Line Outs
- GX connection with locking Ethercon port
- Use Cat5e or higher STP cables with a maximum cable length of 100m per connection.
- Cat6a or higher STP is required for Qu SLink gigaACE/GX connections up to 80m
- DX ports for further I/O expansio
- DX 2 port compatible with ME system (Avantis and SQ only)
