ART MX822 - Eight Channel 1U Rackmount Mixer

by ART
£216.00 inc. vat
£180.00 ex. vat
SKU SARTMX822CE
Usually Ships within 48 hours.

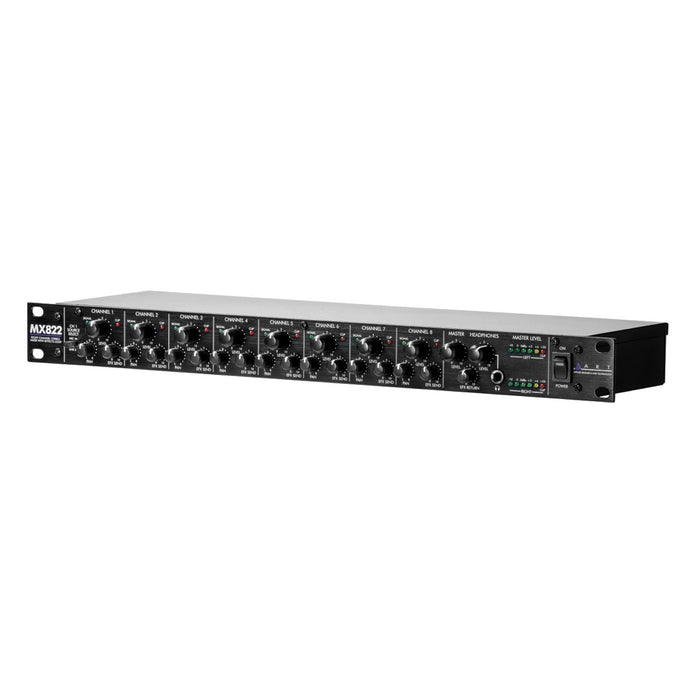

ART MX822 Eight Channel 1U Rackmount Mixer

The ART MX822 Eight Channel Stereo Rackmount Mixer is a versatile eight input mixer for studio, live sound or installation applications. Each input accepts a mono or stereo signal and provides independent level, pan and effects send controls. Channel One includes a switchable mic/line source select and the XLR mic connector provides switchable phantom power.

Multiple MX822s may be chained for additional inputs using common 1/4-inch TRS cables. External effects processors can be linked in and mixed with independent level controls. A front panel headphone jack with separate level control allows independent monitoring.

ART MX822 Features

  • Eight stereo/mono input channels with individual level, pan and effects send controls
  • External effects loop with independent send and return controls
  • Front panel 1/4-inch stereo (TRS) headphone jack with amplifier and independent level control for output monitoring
  • Switchable balanced microphone XLR or 1/4-inch inputs on Channel One
  • Switchable low noise +48V phantom power for microphone input
  • Separate green and red LED signal and clip indicators for each input channel
  • Six level left and right main output metering including clip indicators
  • Balanced left and right XLR main outputs
  • Multiple units may be chained together for additional inputs
  • Rugged 1U rack mount steel case
