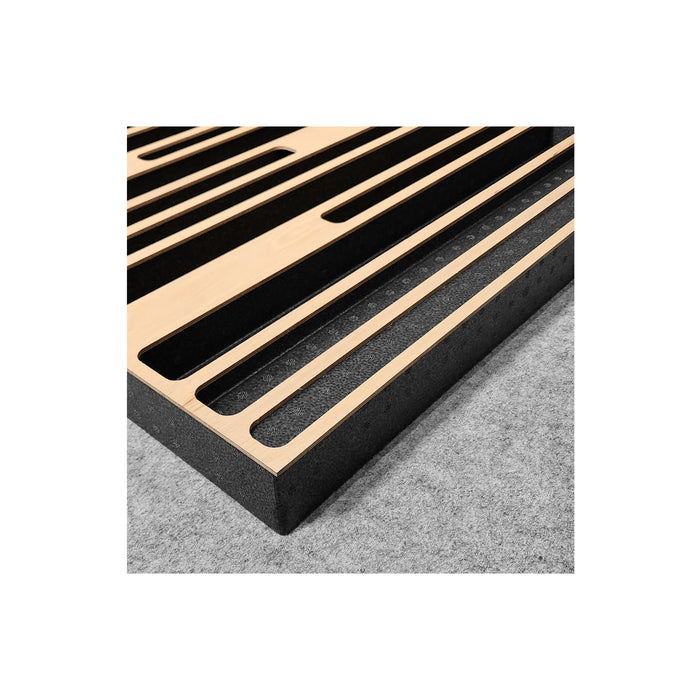

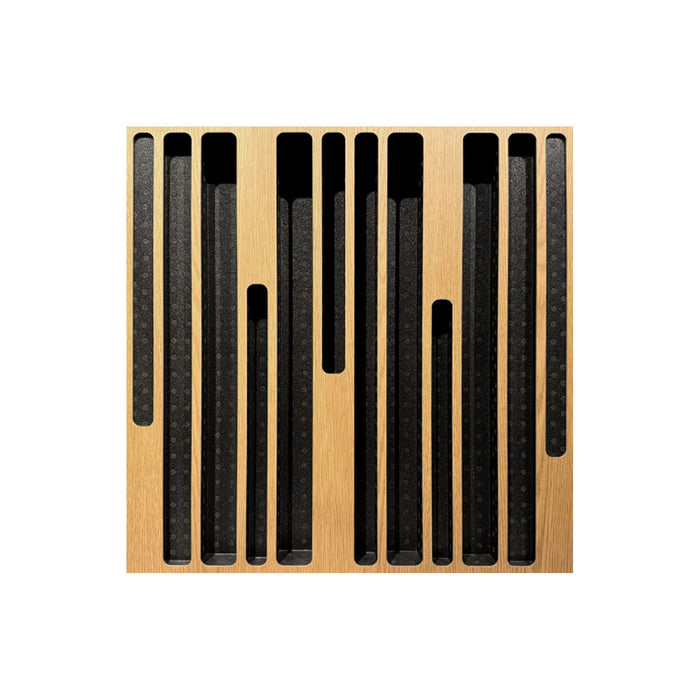

Artnovion Aries E - Diffuser 1.0
The Artnovion Aries Diffuser was designed using various diffusion techniques – inspired from traditional numeric sequence diffusers, it is composed of asymmetrical multi-depth wells, in which specific wells use a folded-depth technique to boost the mid-low diffusion range of the panel.
Whilst the panel itself is only 60mm thick, the extended wells on the diffuser are designed to be effective at 160 Hz and 400 Hz, with a linear diffusion pattern from 700Hz upwards – providing an unheard-of diffusion capacity for its size.
The asymmetric wells are arranged in an optimised sequence to prevent lobing when used in larger arrays, while the extended low-range diffusion allows Aries to outperform any other diffuser in its class.
Each pack contains 6 panels.
Purpose
- Improving mid-low frequency response
- Enlarging sweet spot
- Specular reflection control
- Flutter echo control
Recommended for
- Control room
- Recording room
- Home studio
- Broadcast studio
- Drum room
PRODUCT COMPOSITION:
Logan | Natural wood veneer
- Natural wood veneer
- EPS
Logan | Lacquered HMDF
- Lacquered HMDF
- EPS
Artnovion Aries Specifications:
- Type: 1D - QRD Diffuser

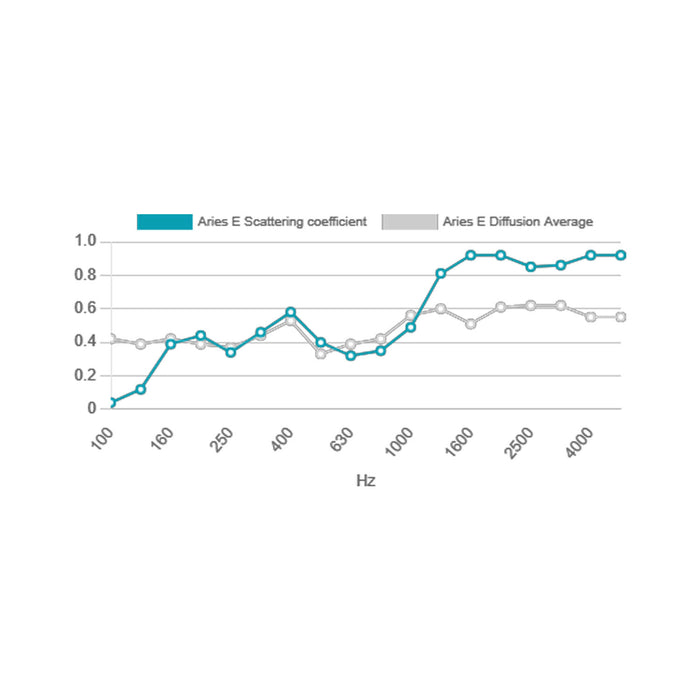

- Scattering range: 160 Hz to 4000 Hz
- Fire rate classification: FG | Furniture Grade
- Panels per box: 6
- Size (per panel): 595 x 595 x 60mm
