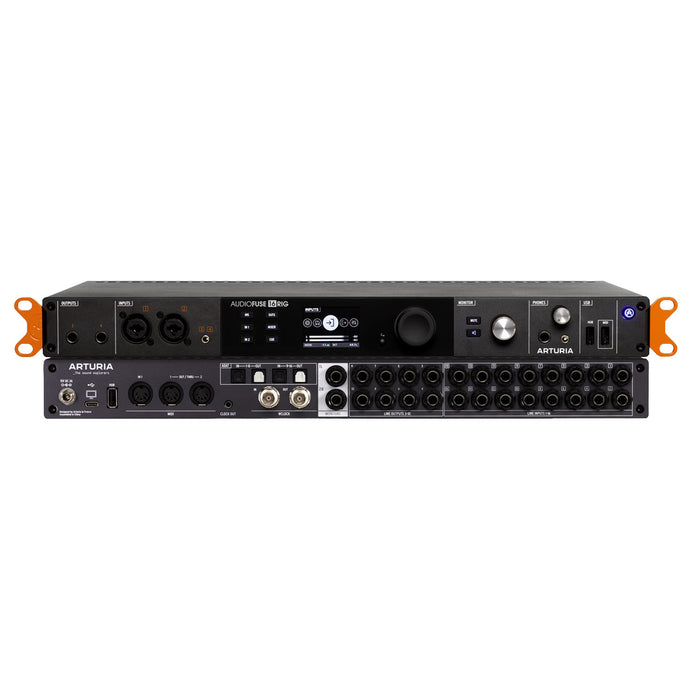

Arturia AudioFuse 16Rig - 32x28 Audio Interface
Arturia AudioFuse 16Rig - 32in/28out Audio Interface
The Arturia AudioFuse 16Rig is a high-density audio interface that combines an unmatched array of connections with a creativity-first workflow, built to handle a hardware-focused setup and keep your devices always in sync, featuring 16-channel immersive monitoring, always sounding pristine and always ready to go.
A standalone mixer
For DAWless recording, live mixing, and outside-the-box audio configuration, AudioFuse 16Rig just works. Fire up its two low-latency internal mixers for sessions away from the studio, process audio & MIDI without a computer connection, and save your configurations for instant recall and quick setup switching and immersive audio monitoring.
Intricate audio routing
Get hands-on with an interface that lets you configure its connections to suit any need, including multiple sends/returns for effects, quick A/B speaker monitoring, and more. The included AudioFuse Control Center even features a matrix for quick ‘connect anything and everything’ configuration.
Quantity, meet quality
Give every recording the shine, clarity, and projection it deserves with two high-quality digitally-controlled preamps and 24-bit AD/DA converters from ESS and Cirrus Logic. Whether it’s red-hot synths, dynamic guitars, delicate vocals, or any combination of inputs, expect top-notch sound across the board.
Choose your workflow
Your interface should adjust to suit your setup, not the other way around. Control AudioFuse 16Rig’s settings via the display or the included software, configure it for desktop or 1U rackmount operation, use the DC-coupled outputs to send signals to synth modules, and connect your high-impedance headphones.
Arturia AudioFuse 16Rig Features
16 x TRS analog inputs
- Includes 2 x high-quality digitally-controlled preamps
- Inputs 3 & 4 also available as 3.5mm stereo input
12 x analog outputs
- Includes 8 x DC-coupled TRS line outputs
- Stereo monitor outputs
- 6.35mm front-panel outputs for reamping, dual-headphones
2 x ADAT in, 2 x ADAT out
- Up to 16 channels of I/O at 48kHz, 8 channels at 88.2/96kHz
Wordclock in & out
1 x MIDI in, 2 x MIDI out/thru
- 5-pin DIN connectors
- Route MIDI standalone
Low-latency USB-C connection
- Class-compliant MIDI
- 3 x USB hub connections
Two internal standalone mixers
- No computer connection needed
- Cue mixer for sub-mixing and added flexibility
- Main mixer controllable by MIDI
Immersive audio monitoring & speaker control
- Configure Dolby Atmos (up to 9.1.6), Auro-3D, 5.1, 7.1, Quad, or any custom layout.
Color display with rotary control & menu buttons
Desktop or 1U rackmount configuration
