ATC SCS140iW Pro - Dual 12" Active Subwoofer (In-Wall)

ATC SCS140iW Pro - Dual 12" Active Subwoofer (In-Wall)

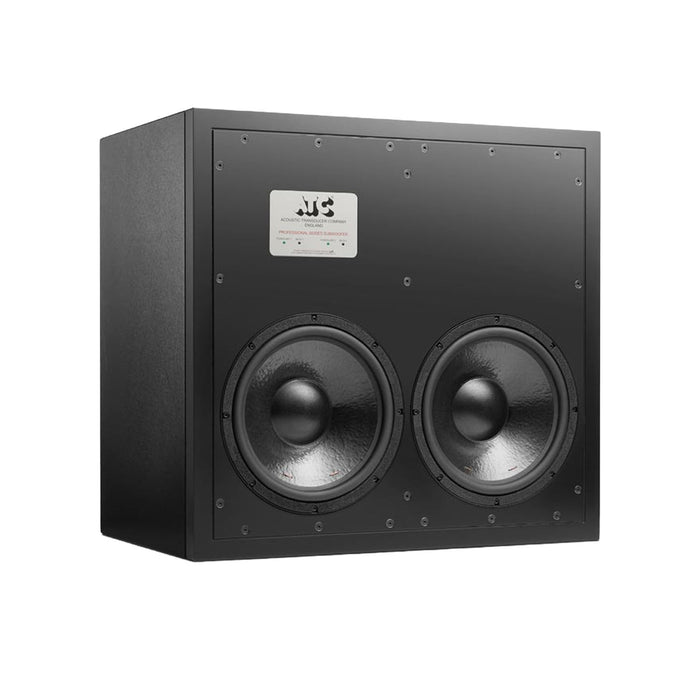

The ATC SCS140iW Pro is a high-performance, dual 12” active subwoofer designed for flush in-wall (soffit) installation in large control rooms. It pairs seamlessly with SCM200AiW Pro main monitors for stereo, multichannel, and immersive audio setups. Its cabinet width matches the SCM200 for a clean, integrated aesthetic when installed together. The SCS140iW Pro also complements smaller monitors where extended bass and high SPL are required.

R1-300 AMPLIFIER

Dual 1-channel 7U/19” rack mount amplifiers to partner SCS140iW Pro subwoofer, suitable for wall or rack mounting.

2 x amplifiers supplied per cabinet.

ATC SCS140iW Pro Features

• Ideal partner to SCM200AIW Pro main monitors.

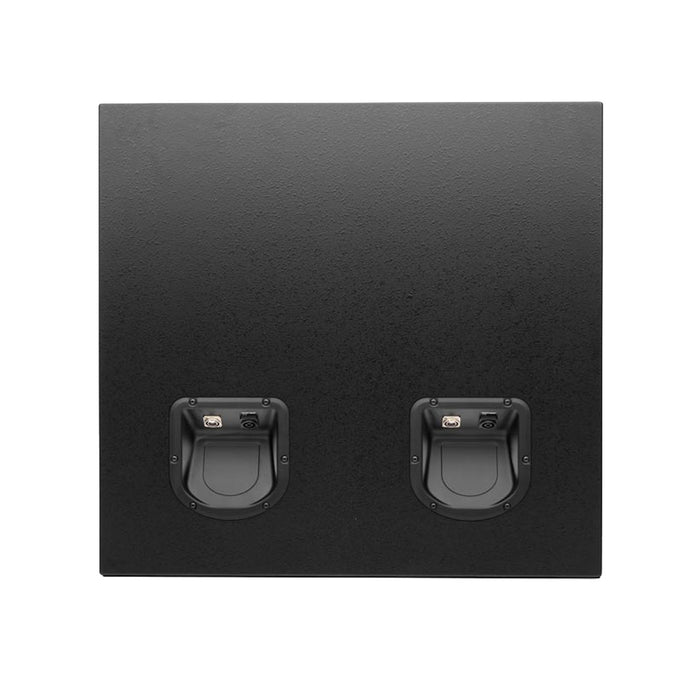

• In-wall (flush mount) cabinet with recessed input panels.

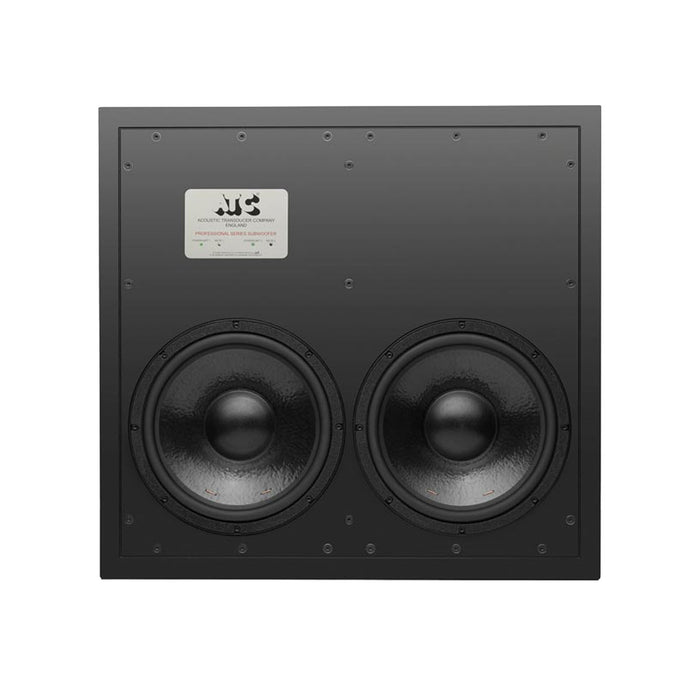

• ATC hand-built 12”/314mm SS75-314SC subwoofer drivers.
• Dual R1-300 remote rack mount amplifiers (7U/19”).
• Amp - sub connection via NL4 speaker & 5-PIN XLR LED cable*
• Stereo balanced inputs & stereo 'link' balanced outputs.
• Level, low-pass frequency & phase user controls.
• Remote muting via footswitch**.
• Hand-built in England and covered by a 6-year warranty.
• *cables supplied separately prices according to length.
• ** footswitch supplied separately, latching type, 1/4”/6.35mm jack connection.

ATC SCS140iW Pro Specifications

ACOUSTIC SPECIFICATIONS

• Drive Unit - Bass: 2 x ATC SS75-314SC 8Ω.
• Low Frequency Cut-off: 22Hz.
• Low Pass Filters: 50Hz, 65Hz, 80Hz, 320Hz (-6dB, 4th order Linkwitz Riley).
• Max SPL: 116dB continuous, 121dB peak (IEC Weighted Pink Noise, measured at 1m, half space, low pass filter set @ 80Hz).
• Sensitivity: 85dBC, ref. -17dBu (single channel of both amplifiers driven, Gain +6, Level 0dB, pink noise, low pass filter set at 80Hz).

ELECTRONIC SPECIFICATIONS

Note - specifications are for a single amplifier and two amplifiers are supplied per cabinet.

• Balanced Input: 2 x Female XLR, pin 2 hot.
• Input Impedance: Approx. 20kΩ (differential).
• Input CMRR: 90dB at 200Hz.
• Input Sensitivity: 3.2dBu/1.12Vrms for full power (single channel driven, Gain 0dB, Level 0dB).
• Gain Control: 0, +6dB, +10dB.
• Level Control: 0dB -11dB in 1dB steps. Total range 21dB with use of Gain switch.
• Phase Control: 0-180° ref. Input.
• Polarity Control: In-phase/Out-of-phase ref. Input.
• Low Pass Filters: 4th Order Linkwitz Riley.
• Output Impedance: Approx. 100Ω (differential).
• Amplifier type: Grounded Source MOSFET based Class A-B, convection cooled.
• Output Power: 300W in to 8Ω.
• THD+N: <0.003%/-90dB, at 100Hz, 300W into 8Ω over 90kHz bandwidth.
• Frequency Response: <2Hz (-3dB) - 320Hz (-6dB, set by panel-controlled LP filter).
• Limiter: ATC Active FET Momentary Gain Reduction, active limiter indicated on front panel.
• Electronic Amp Protection: Amplifier D.C Offset and over-temperature (both indicated on rear panel).
• Power Consumption: Idle 16W/60VA, 1/8th Power 170W/230VA, Full Power 500W / 600VA.
• Mains Input: 220-230V, 115V - Factory set. Please observe panel markings and labels.
• Heat Output: Idle 47.8 BTU/hr, 1/8th Power 458.9 BTU/hr, Full Power 682.4 BTU/hr.
• Additional: Mute via ¹/₄”/ 6.35mm Jack socket, controlled via latching footswitch.

PHYSICAL SPECIFICATIONS

• Net Weight: 69.7kg/153.7lbs.
• Product Dimensions: (H x W x D): 784 x 925 x 460mm / 30⁷/₈ x 36⁷/₁₆ x 18¹/₈ inches.
