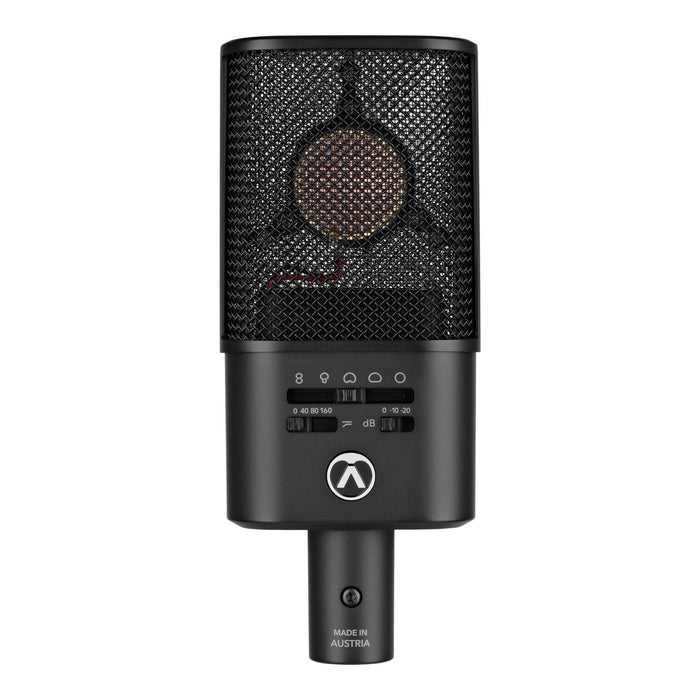

Austrian Audio OC616 Studio Set - Large-Diaphragm Cardioid Conde

Austrian Audio OC616 Studio Set - Large-Diaphragm Cardioid Condenser Microphone

The Austrian Audio OC616 is what happens when legendary DNA meets modern attitude. Handcrafted in Vienna around the CKR12 capsule for clear, direct sound with punch and presence. Five polar patterns. Massive headroom. Open Acoustic Technology. From delicate vocals to screaming amps, it takes on any source. One mic. Every source. No compromise.

CKR12. Pure Sound at Its Core.
At the heart of the OC616 is the CKR12  – Austrian Audio’s handcrafted 1” large-diaphragm true condenser capsule, featuring an edge-contacted design, built on the legacy of the legendary C12 and pushed far beyond it. Engineered with a ceramic isolator and individually measured during production, the CKR12 delivers exceptional consistency, ultra-low distortion, and a level of detail that reveals every nuance of a performance. Fast transients, open highs, controlled lows – all captured with absolute precision and zero artificial colouration.

No vintage myths. No artificial character. Just the full truth of your sound.

Nothing added. Nothing held back.

Austrian Audio OC616 Specifications:

• Directional characteristic (Multi): Cardioid, Omnidirectional, Figure-8, Hypercardioid, Wide Cardioid

• Frequency range: 20 Hz – 20 kHz

• Sensitivity (all directions): 13 mV/Pa

• Equivalent noise level: 13 dB SPL (A)

• Max SPL: 147 dB SPL (157 dB SPL)

• Switchable Pad: -10 dB, -20dB

• Analog low cut filter: 40 Hz (2nd Order), 80 Hz (2nd Order), 160 Hz (1st Order down to 80Hz, 2nd Order below)

• Impedance: 108 Ω (symmetrical)

• Load impedance: > 1 kΩ

• Supply voltage: 48 V (< 3 mA)

• Main Connector: XLR 3 pin

• Dimensions: 157 x 66 x 34mm

• Weight: 345 g
