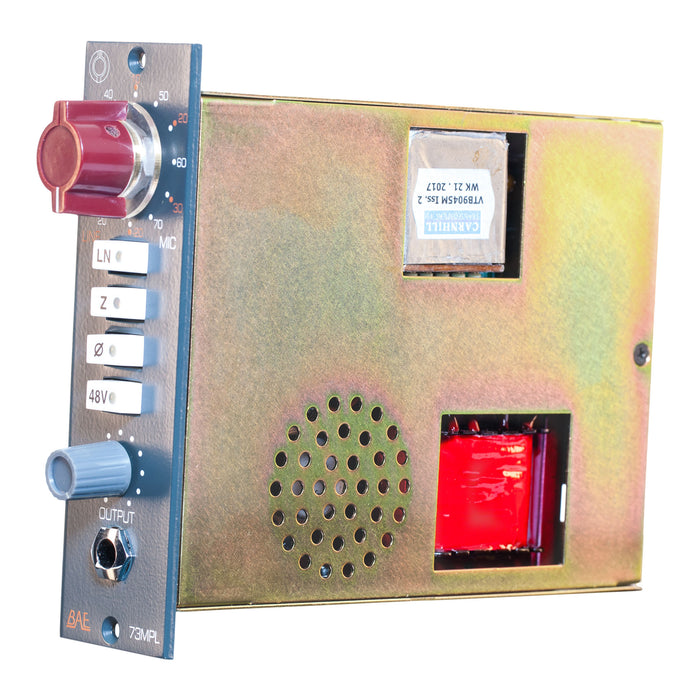

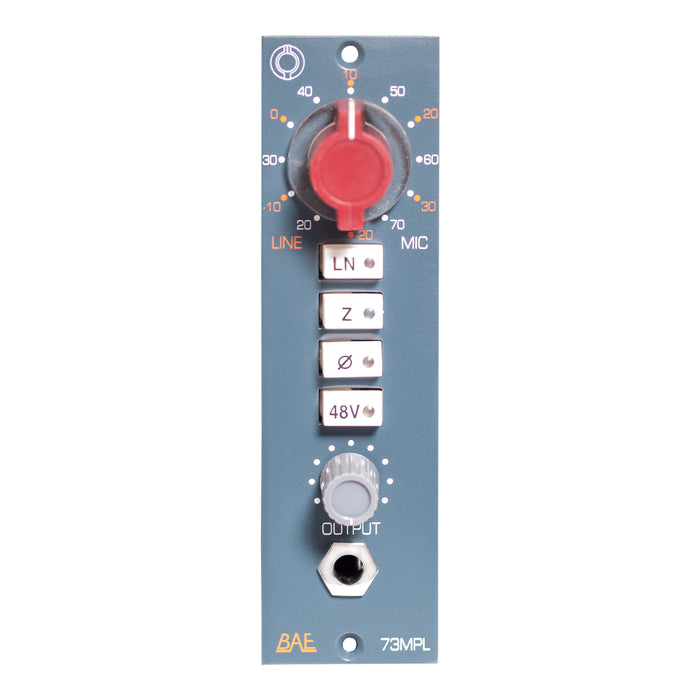

BAE 1073MPL - 500 Series version of 1073MP

BAE 1073MPL - 500 Series version of 1073MP

The BAE 1073MPL is the 500 Series version of the 1073MP (a mic pre-amp version of the 1073 equaliser), having the same well-known characteristic Class A sound with its harmonically rich low end, slight resonant highs, and maintained focused mids.

Two selectable impedances makes the 1073MPL work well with a variety of microphones.

As a coloured and versatile mic-pre, the 1073MPL maintains its sonic signature across a wide bandwidth.

BAE 1073MPL Key Features:

• All Class A, transformer-coupled design in a 500 series module.

• Original Marconi knobs.

• Input impedance selector switch between 1200 and 300 ohms.

• Line-level capability for extra versatility as a line preamp.

• High impedance DI for guitar and synth.

• Same Carnhill St Ives transformers as the 1073 and 1084.

• Same modular design and hand-wiring BAE is known for.

BAE 1073MPL Specifications:

• Frequency Response: 10Hz to -3dB at 55kHz
• Line Input Impedance: 10k ohms
• Output Impedance: 65 ohms
• Common Mode Rejection Ratio: 100dB min @ 60Hz
• Maximum Output Level: +27.4 dBu @ 600Ω
• Gain dB; 0 to 71 dB
