Bettermaker Mastering Limiter 2.0 Analogue Mastering Limiter with Dual Clipper

Bettermaker Mastering Limiter 2.0 Analogue Mastering Limiter with Dual Clipper

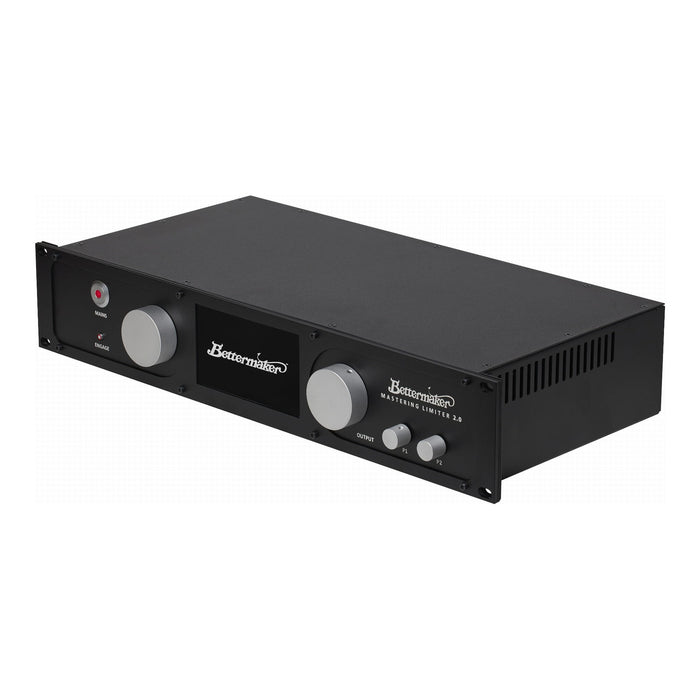

The Bettermaker Mastering Limiter 2.0 is the second generation of Bettermaker's analogue mastering limiter, adding a new limiting engine, a redesigned clipper with two independent stages and a reworked Colour section, all with full digital recall. The audio path is 100% analogue, while every setting is stored on the unit and controlled from its touchscreen or from the Bettermaker plugin.

You can blend limiting and clipping to taste, choose intelligent, manual or BPM-synced release, and shape the sidechain with a high-pass filter and mid boost so the limiter reacts to the parts of the mix that matter. Two Colour modules add odd or even harmonics through an M/S matrix, and extensive metering, including LUFS, makes it a complete final stage for a mastering chain.

Key Features:

• New limiting engine:
  Up to 20dB of gain reduction, attack from 0.1 to 250ms and release from 2ms to 2s, plus intelligent release (IREL).
• Dual clipper:
  Two independent clipper stages with trim, and a variable mix between limiting and clipping.
• Colour section:
  Two saturation modules, one mainly odd and one mainly even harmonics, each with its own internal EQ, through a new M/S matrix.
• Smarter sidechain:
  High-pass filter from 20 to 200Hz and a mid boost at 2kHz or 7kHz.
• Flexible input/output link:
  Link mode compensates between input and output level, and automatic makeup gain has a trim control.
• Mid/Side and true bypass:
  M/S processing mode and relay-based true bypass.
• Comprehensive metering:
  VU, PPM, RMS, peak, LUFS and K-System meters, a 30-band FFT analyser, goniometer and correlation meter. You can measure at the hardware output or the plugin output.
• Total recall:
  Internal preset memory plus plugin control and automation over USB.

In the Box:

• Bettermaker Mastering Limiter 2.0
• 12V DC power adapter (100 to 240V AC)
• Bettermaker Mastering Limiter 2.0 plugin (download from Bettermaker)

Specifications:

• Maximum gain reduction: 20dB
• Input / output adjust: 0 to +20dB / -10 to +12dB
• Makeup gain: automatic with ±8dB trim
• Attack / release: 0.1 to 250ms / 2ms to 2s plus IREL
• Sidechain: HPF off or 20 to 200Hz (2nd order), mid boost off or 8dB at 2kHz or 7kHz
• Frequency response: 6Hz to 27kHz (-0.5dB)
• Flatness: ±0.1dB (20Hz to 20kHz)
• Dynamic range: 107dB
• THD+N / THD: 0.05% / 0.03%
• CMRR: >80dB
• Crosstalk: >76dB

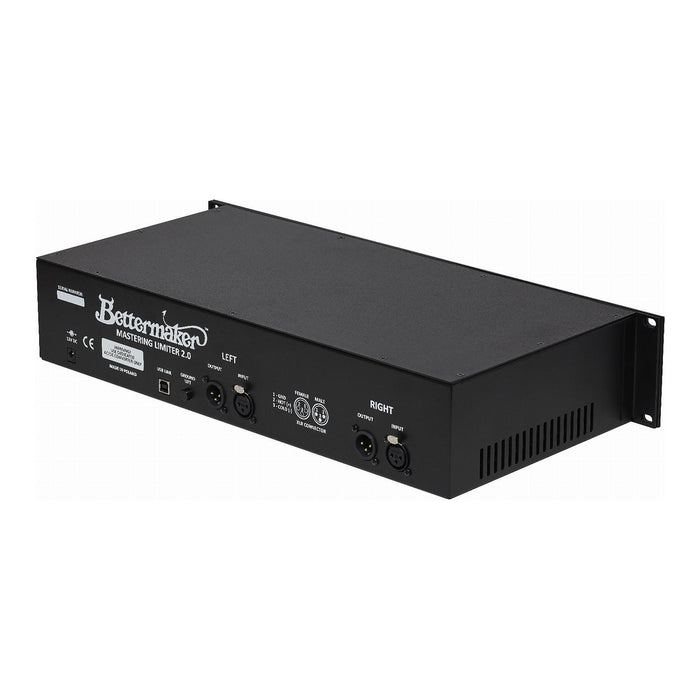

• Connections: balanced XLR in and out, USB Type-B to Mac/PC, 12V DC input
• Format: 2U rackmount, 230mm deep
• Shipping weight: 5kg
