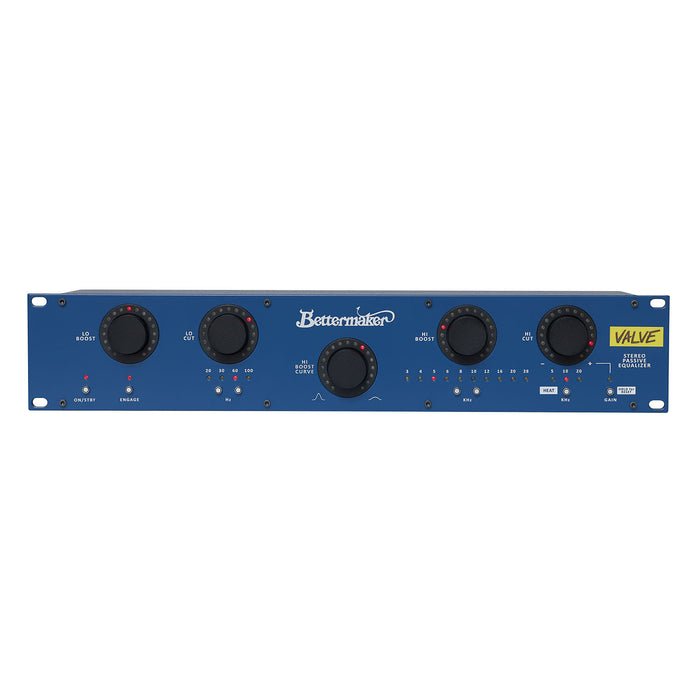

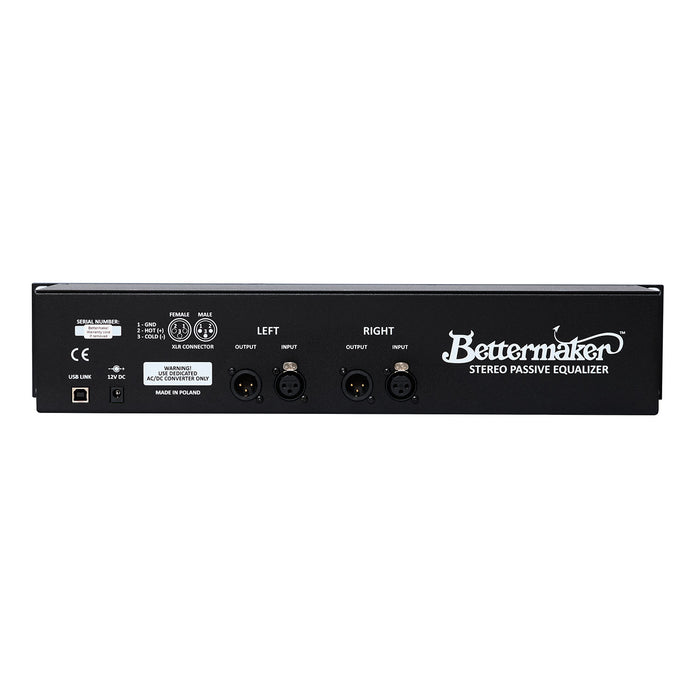

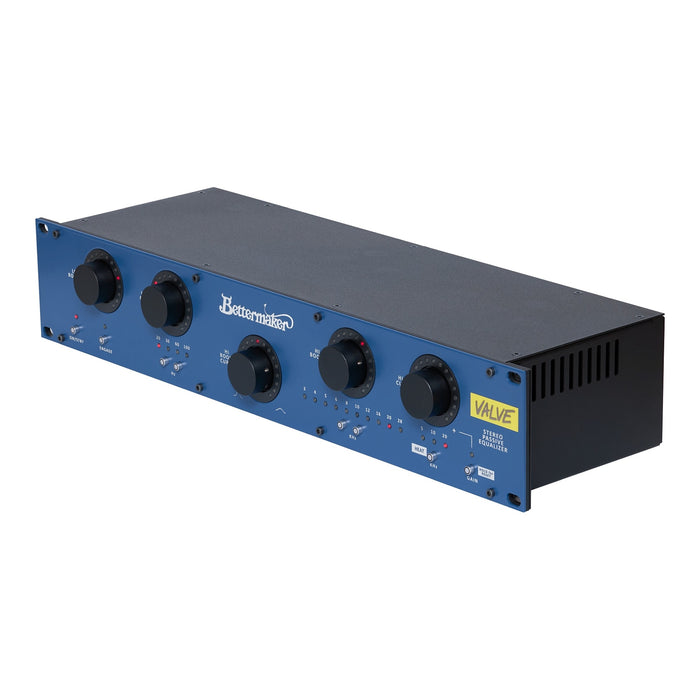

Bettermaker Valve Stereo Passive Equalizer (VSPE)
Bettermaker Valve Stereo Passive Equalizer
Digitally controlled analog Stereo Passive Equalizer with transformer output and vacuum tube drive stage.
The Bettermaker Valve Stereo Passive Equalizer (VSPE) is a breakthrough in audio engineering, combining the timeless warmth of vacuum tube technology with the precision of digital recall. Years of meticulous development and testing have culminated in a product that promises to revolutionize your sound.
Tubes
The tubes used in this device were produced in the USSR in the 70s and 80s exclusively for the needs of the military and were intended for use in the electronics of ballistic missiles and military jet fighters. Meeting very strict requirements in terms of durability and electrical parameters, they have been designed in such a way as to minimize the phenomenon of microphonics and ensure very high parameters even after a long period of use. This is one of the few Tubes in which attention was paid to the extremely low level of noise and distortion. Each tube that left the factory then, was selected during strict tests of all parameters and has an individual military acceptance stamp.
Transformers
Having worked extensively with over a hundred different vintage transformers from esteemed manufacturers like Siemens (for WSW, Telefunken, military), Collins, Marinair, UTC, Malotki, Soviet military, and others, the differences are not just audible but measurable. One of the most glaring issues arises in the lower frequency range, where distortion levels can be significatly higher than at 1kHz.
While frequency response might appear adequate, the coherence of the sound in the lower range often falls short of musical expectations. To cut a long story short, after years of rigorous research and collaboration with core manufacturers, We’ve finally developed a transformer that satisfies us on multiple fronts—as musicias, a sound engineers, and an electronics developers.
DAW Integration
Bettermaker Valve Stereo Passive Equalizer is delivered with hybrid DAW plugin that allows you to control and recall all settings of the hardware. Additionally provides high quality digital HPF and LPF, spectrum analyzer, session snapshots and other useful functions such as dual mono operation, audio level metering and quantize (step) mode for all hardware knobs. You can also adjust VSPE filters by draging handles on the EQ curve graph. Currently selected band will be solo’ed to let you hear the changes.
Please note that some hardware features are available only when DAW plugin is connected and active. In standalone mode VSPE will link both channels and disable quantize mode. HEAT function is always linked, regardless the link mode or channel selected
Bettermaker VSPE Features
- STEREO/ DUAL MONO Passive Equalizer with Tubes and Transformers
- New Heat audio circuitry provides warmth and rich harmonics
- Handcrafted HQ Audio Transformers made by Bettermaker
- New intuitive DAW plugin including mastering HPF, LPF and band Audition engine
Bettermaker VSPE Specifications
- Maximum input level: +24 dBu (balanced with 48kΩ input impedance)
- Maximum output level: +22 dBu
- Output impedance: 120Ω (30Ω with HEAT activated - transformer balanced)
- Nominal audio level: +4 dBuMax LF boost: 15 dB (set to 100 Hz)
- Max LF cut: 16 dB (set to 100 Hz)
- Max HF boost: 18 dB (all frequencies)
- Low boost/cut frequencies: 20, 30, 60, 100 Hz
- High boost frequencies: 3, 4, 5, 6, 8, 10, 12, 16, 20, 28 kHz
- High cut frequencies: 5, 10, 20 kHz
- Control Resolution: 101 steps (Lo Boost, Lo Cut, Hi Boost, Bandwidth) & 34 steps (Hi Cut)
- Control Resolution in Quantize mode: 17 steps for all controls
- Output gain: +/- 8 dB (0.1 dB resolution; 1 dB in Quantize mode)
- Unit height: 2U
- Unit depth: 140 mm
- Unit weight without cables and PSU: 2.7kg
- AC power consumption: 18W (2W in standby, with included 100-240VAC power adapter)
- Shipping weight & dimensions: 3.5kg, 60x30x20 cm
