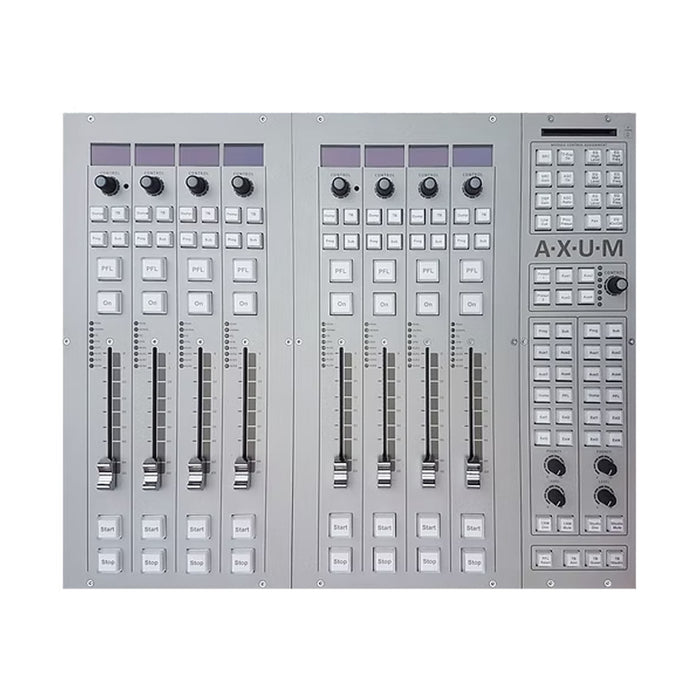

D&R Axum - Broadcast Mixing Console
D&R Axum
With 12 Faders + CRM section in Dropthrough, 1x Mic AD, 2x Line AD, 1x Line DA, 1x CRM, 1x DSsrc, 1x Hybri - example configuration, contact us to discuss setup specifications
Build a compact four-fader workstation or a large networked broadcast environment with shared I/O, programmable controls and remote operation.
Flexible modular architecture
Create systems from compact four-fader workstations to large multi-surface installations with shared I/O and up to 128 motorized faders.
Advanced digital processing
A 1280² routing matrix, up to 128 stereo DSP channels and programmable controls provide extensive flexibility for complex broadcast workflows.
Networked studio operation
Dante network audio, remote operation, four control surfaces and 96 kHz 24-bit conversion support dependable operation throughout modern broadcast facilities.
D&R AXUM Features
Scalable surfaces
Start with four faders and expand to 8, 12, 16 or larger configurations.
Shared I/O
Connect up to four control surfaces to one Engine and shared I/O rack.
Programmable controls
Assign functions to switches, encoders and faders through the internal website.
1280 × 1280 matrix
Route a large number of sources and destinations inside one system.
16 stereo buses
Program, Sub, Cue, Communication and twelve Aux buses per DSP.
128 stereo channels
Use up to four DSP cards with 32 stereo processing channels each.
Studio communication
Sixteen talkback buses support complex multi-studio workflows.
Remote operation
Control AXUM locally or through the optional Virtual Remote application.
Optional redundancy
Use redundant power supplies for increased operational security.
