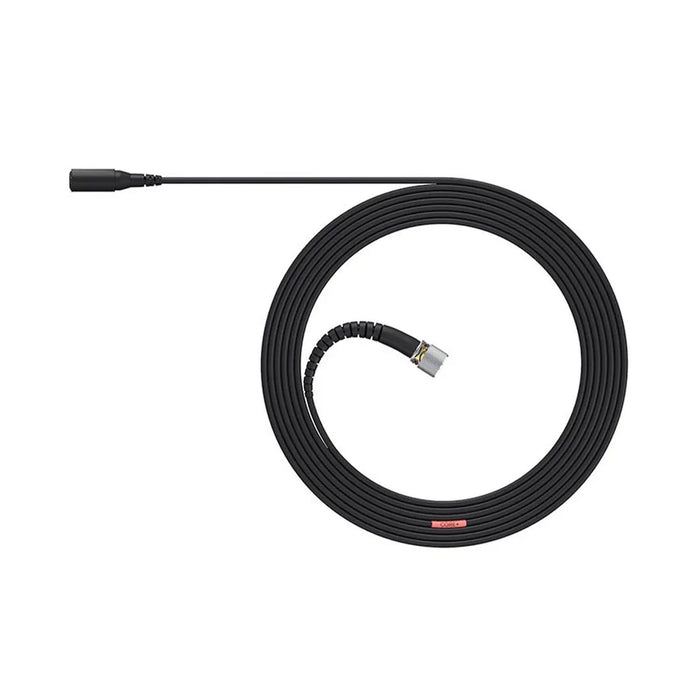

DPA CORE+ 4071 Omni Mic, Presence Boost, Loud SPL, MicroLock (4071-OP-C-B90)

Original price £529.00 - Original price £529.00
Original price £0.00
£529.00 inc. VAT
£529.00 - £529.00
Current price
£529.00 inc. VAT
ex. VAT
SKU SDPA4071OP
Please contact us for availability.

DPA CORE+ 4071 Omni Mic, Presence Boost, Loud SPL, MicroLock (Black)

The 4071 Miniature Omnidirectional Microphone, Presence Boost is a fantastic omnidirectional condenser lavalier mic, which features a presence boost of typically 5 dB at 4 to 6 kHz. This is critical for a chest-placed microphone because the frequency range of the consonants spoken is damped in this position, which results in poor intelligibility. The 4071 has a boost that maximizes speech intelligibility. This microphone will be able to handle sound pressure levels up to 144 dB before clipping occurs.

When recording voices from mic placement on a performer's body, no frequency below 100 Hz is attractive. For this reason, an acoustical low-cut at 100 Hz has been incorporated in the 4071’s capsule so the built-in preamplifier (and the wireless system) will have a much larger headroom. Furthermore, the low-cut filter removes low-frequency rumble, noise and proximity effect.

Because of its special optimization for speech, this mic is especially appropriate for ENG news crews since very few ENG mixers have the ability to make this type of compensation. It is also a fantastic choice for in-studio reporters or even hidden under clothing for film production use.

The 4071 is available in three colors: black, beige and white.

DPA CORE+ 4071 Features

  • Exceptional audio quality
  • Uniform, consistent sound between DPA mics
  • Extremely rugged and reliable
  • Diminutive size made for flexible and easy concealment
  • Large selection of clips, windscreens, grids and other accessories
  • Modular adapter system fits most professional wireless systems

DPA CORE+ 4071 Specifications

  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency response: 20 Hz - 20 kHz
  • Effective frequency range ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • Distortion, THD < 0.5%: 133 dB SPL RMS, 136 dB SPL peak
  • Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
  • Dynamic range: Typ. 111 dB
  • Max. SPL, THD 10%: 144 dB SPL peak
  • Rated output impedance: 30 - 40 Ω
  • Cable drive capability: Up to 300 m (984 ft) with DAD9001-BC XLR Adapter
  • Power supply (for full performance): For wireless systems Min. 5 V - max. 10 V through DPA adapter
  • With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
  • Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
  • Connector: MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Weight: 7.5 g (0.26 oz) incl. Cable and MicroLock connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 12.7 mm (0.5 in)
  • Cable length: 1.8 m (5.9 ft)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90%
  • Sensitivity selection tolerance (at 1 kHz): ±1.5 dB
