DPA CORE+ 4088 Directional Headset Mic, MicroLock (4088-DP-A-B90-LH)

DPA CORE+ 4088 Directional Headset Mic, MicroLock (4088-DP-A-B90-LH)

by DPA Microphones
£720.00 - £720.00
£0.00
£720.00 inc. VAT
£720.00 - £720.00
£720.00 inc. VAT
ex. VAT
SKU SDPA4088DP
Please contact us for availability.

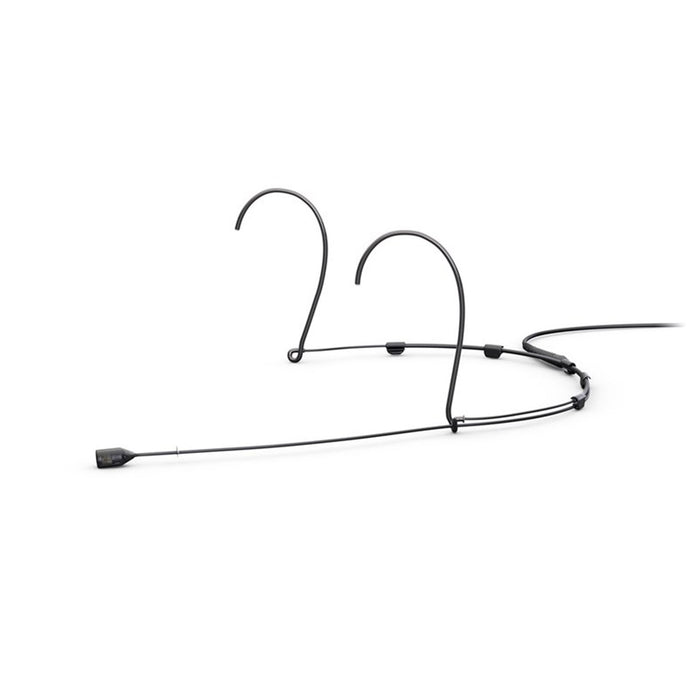

DPA CORE+ 4088 Directional Headset Mic, MicroLock (Black)

The classic DPA 4088 Directional Headset Microphone is the industry standard in professional headset mics. It offers an open and natural sound making it ideal for both spoken word and vocal performance applications.

This mic provides excellent off-axis rejection in high-SPL situations. It efficiently suppresses distant sound sources making it perfect for demanding live performance environments where background noise and feedback are concerns. In high-SPL events, or when feedback is a concern, this microphone will tackle these challenges with ease. The bass response is designed for optimal linearity at 2-3 cm (1 inch) from the sound source. This means that the bass roll-off will be relatively prominent at a greater distance - a paramount factor when it comes to rejection of background noise and in the fight to avoid feedback.

The smooth and elegant design of the 4088 Directional Headset Microphone makes it the most invisible head-worn true cardioid microphone in the world. This microphone has a secure, dual-ear design that can be used for various performing talent applications. It has a small .64 cm (.25 in) diameter, which allows for discreet use. It only weighs 14 g (.5 oz) and is very comfortable when worn for long periods. The microphone can be mounted on the right or left side.

The DPA CORE+ 4088 is also available with 3-pin LEMO, TA4F Mini-XLR, or Mini-Jack connector - all variants come in either black, brown, or beige. There is also a small version of each mic variant available.

DPA CORE+ 4088 Features

  • Pristine audio quality
  • Lightweight and flexible
  • Easy mounting to the left or right
  • Resistant to humidity
  • Flexible adapter system fits most professional wireless systems

DPA CORE+ 4088 Specifications

  • Directional characteristics: Cardioid
  • Principle of operation: Pressure gradient
  • Cartridge type: Pre-polarized condenser element with vertical diaphragm
  • Frequency response: 20 Hz - 20 kHz
  • Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; 44 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
  • Equivalent noise level ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
  • Distortion, THD < 0.5%: 137 dB SPL RMS, 140 dB SPL peak
  • Distortion, THD < 1%: 139 dB SPL RMS, 142 dB SPL peak
  • Dynamic range: Typ. 116 dB
  • Max. SPL, THD 10%: 146 dB SPL peak
  • Rated output impedance: 30 – 40 ohm
  • Cable drive capability: Up to 300 m (984 ft) with DAD9001 XLR Adapter
  • Power supply:
    • For wireless systems Min. 5 V - max. 10 V through DPA adapter
    • With DAD9001: P48 (Phantom Power). Will work from 12 V
  • Connector: MicroLock, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
  • Microphone weight: 14 g (0.5 oz) incl. Cable and MicroLock connector
  • Microphone diameter: 5.4 mm (0.21 in)
  • Microphone length: 11 mm (0.5 in)
  • Cable length: 1.2 m (3.9 ft)
  • Cable diameter: 1.6 mm (0.06 in)
  • Polarity: Positively increasing sound pressure produces positive going voltage on MicroLock pin
  • Operating temperature range: -10 to 45 °C (14 to 113 °F)
  • Relative humidity (RH): Up to 90%
