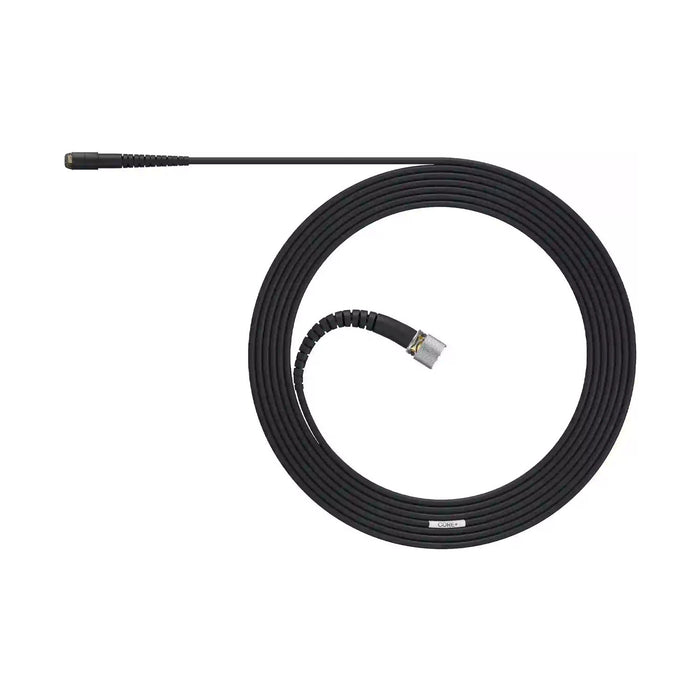

DPA CORE+ 4660 Heavy Duty Omni Mic, Normal SPL, MicroLock (4660-OP-H-B90)

Made for situations where you require maximum security and where the visual size of the mic is less important. The Heavy Duty DPA 4660 features a stainless steel housing, a heavy-duty cable relief and a thick 2.2 mm (0.09 in) cable. The DPA Heavy Duty microphones are a more robust version of the original mics they are based upon.

CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

A very flexible and durable miniature microphone, the 4660 Heavy Duty exhibits an exceptionally accurate omnidirectional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup. It is especially suited for capturing speech in all of its nuances and can be used for very high-end ambient recordings where space is limited or the microphone needs to be hidden.. This microphone handles sound pressure levels up to 134 dB before clipping occurs.

This mic is available in two colors: black and beige (the black variant is also available with 3-pin LEMO connector).

DPA CORE+ 4660 Features

• The most rugged and reliable version of DPA miniatures
• Stainless steel housing, heavy-duty strain relief and thick cable
• Exceptional audio quality
• Uniform, consistent sound between DPA mics
• Sturdy but small for flexible and easy concealment
• Modular adapter system fits most professional wireless systems

DPA CORE+ 4660 Specifications

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB:
  • Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz.
  • High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 35 dB (max. 38 dB)
• Distortion, THD < 0.5%: 128 dB SPL RMS, 131 dB SPL peak
• Distortion, THD < 1%: 129 dB SPL RMS, 132 dB SPL peak
• Dynamic range: Typ. 106 dB
• Max. SPL, THD 10%: 134 dB SPL peak
• Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9001-BC: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD9001-BC XLR Adapter
• Output balance principle: Signal balanced with DAD9001-BC XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9001-BC XLR Adapter
• Power supply (for full performance):
  • For wireless systems Min. 5 V - max. 10 V through DPA adapter
  • With DAD9001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
• Connector: MicroLock, 3-pin LEMO
• Weight: 13 g (0.46 oz) incl. Cable and MicroLock connector
• Microphone diameter: 5.4 mm (0.21 in)
• Microphone length: 17.6 mm (0.7 in)
• Cable length: 1.8 m (5.9 ft)
• Cable diameter: 2.2 mm (0.09 in)
• Polarity: Positively increasing sound pressure produces positive-going voltage at MicroLock pin (and pin 2 on DAD9001-BC XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
