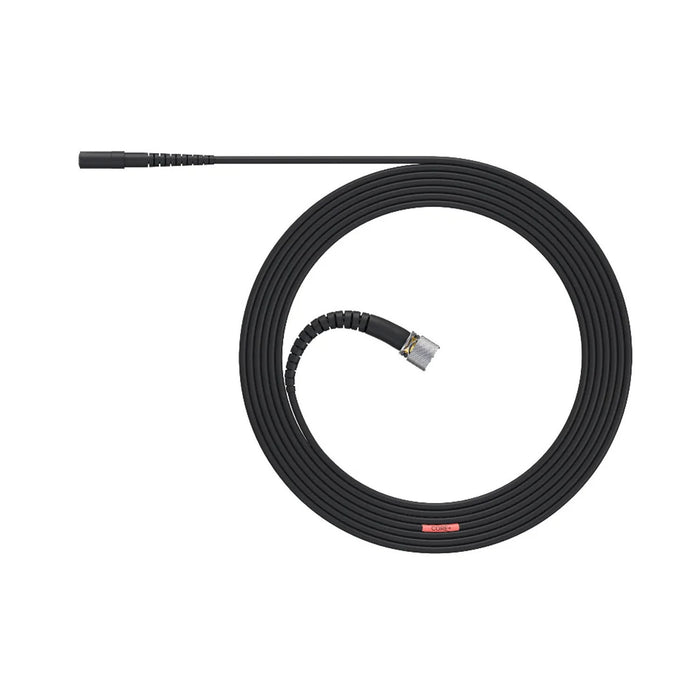

DPA CORE+ 4671 Heavy Duty Omni Mic, Presence Boost, Loud SPL, MicroLock (4671-OP-H-B90)

Made for situations where you require maximum security and where the visual size of the mic is less important. The Heavy Duty DPA 4671 features a stainless steel housing, a heavy-duty cable relief and a thick 2.2 mm (0.09 in) cable. The DPA Heavy Duty microphones are a more robust version of the original mics they are based upon.

CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock – A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.

The 4671 is a fantastic lavalier mic, which features a presence boost of typically 5 dB at 4 to 6 kHz, which is optimized for chest-placement. The mic has a boost that maximizes speech intelligibility. This microphone will be able to handle sound pressure levels up to 144 dB before clipping occurs.

An acoustical low-cut at 100 Hz has been incorporated in the 4071’s capsule so the built-in preamplifier (and the wireless system) don’t need to cope with unwanted sound.  Furthermore, the low-cut filter removes low-frequency rumble and noise. A miniature mesh and a fur windscreen are optional items for this microphone.

DPA CORE+ 4671 Features

• The most rugged and reliable version of DPA miniatures
• Stainless steel housing, heavy-duty strain relief and thick cable
• Exceptional audio quality
• Uniform, consistent sound between DPA mics
• Sturdy but small for flexible and easy concealment
• Modular adapter system fits most professional wireless systems

DPA CORE+ 4671 Specifications

• Directional pattern: Omnidirectional
• Principle of operation: Pressure
• Cartridge type: Pre-polarized condenser
• Frequency response: 20 Hz - 20 kHz
• Effective frequency range ±2 dB: 100 Hz - 15 kHz with typ. 5 dB soft boost at 4 - 6 kHz
• Sensitivity, nominal, ±3 dB at 1 kHz: 6 mV/Pa; -44 dB re. 1 V/Pa
• Equivalent noise level, A-weighted: Typ. 26 dB(A) re. 20 µPa (max. 28 dB(A))
• Equivalent noise level, ITU-R BS.468-4: Typ. 38 dB (max. 40 dB)
• Distortion, THD < 0.5%: 133 dB SPL RMS, 136 dB SPL peak
• Distortion, THD < 1%: 136 dB SPL RMS, 139 dB SPL peak
• Dynamic range: Typ. 111 dB
• Max. SPL, THD 10%: 144 dB SPL peak
• Rated output impedance: From MicroLock: 30 - 40 Ω. From DAD9001-BC: 100 Ω
• Cable drive capability: Up to 300 m (984 ft) with DAD9001-BC XLR Adapter
• Output balance principle: Signal balanced with DAD9001-BC XLR Adapter
• Common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD9001-BC XLR Adapter
• Power supply (for full performance):
  • For wireless systems Min. 5 V - max. 10 V through DPA adapter
  • With DAD9001-BC: P48 (Phantom Power). Will work from 12 V
• Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD9001-BC XLR Adapter
• Connector: MicroLock, 3-pin LEMO
• Weight: 14 g (0.5 oz) incl. Cable and MicroLock connector
• Microphone diameter: 5.4 mm (0.21 in)
• Microphone length: 17.6 mm (0.7 in)
• Cable length: 1.8 m (5.9 ft)
• Cable diameter: 2.2 mm (0.09 in)
• Polarity: Positively increasing sound pressure produces positive-going voltage at MicroLock pin (and pin 2 on DAD9001-BC XLR adapter)
• Temperature range: -40°C to 45°C (-40°F to 113°F)
• Relative humidity (RH): Up to 90%
