DPA DPK2015 - Piano Stereo Kit
DPA DPK2015 - Piano Stereo Kit
The DPA DPK2015 Piano Stereo Kit is a ready-to-go stereo miking system for grand piano, built around a selected pair of DPA 2015 Wide Cardioid condenser microphones. Everything you need comes in one compact case, including gooseneck mounts, cables and a lightweight stereo boom, so the pair can be rigged in a minute or two inside or outside the instrument, with the lid open or closed.
The two microphones are chosen to match within ±1 dB sensitivity at 1 kHz, which gives you a steady, believable stereo image. Their wide cardioid pattern picks up more of the soundboard than a standard cardioid and is less fussy about exact placement. Engineers often describe the result as slightly sweeter than narrower-pattern kits, with a full, well-blended tone. The kit is designed for piano, but the pair also works well as drum overheads and on horn sections, vibraphone, marimba and other wide acoustic sources.
DPA DPK2015 Features
- Selected stereo pair of 2015 Wide Cardioid mics, matched within ±1 dB at 1 kHz
- Wide cardioid pattern for an even, natural stereo picture and easier placement
- Mounts inside or outside a grand piano, lid open or closed
- GM1500 gooseneck mounts and SBO400 stereo boom help reduce vibration and structure-borne noise
- Handles up to 150 dB SPL peak with less than 1% THD, so it copes easily with loud passages
- Low self-noise of 18 dB(A) and a typical dynamic range of 132 dB
- Comes in a compact protective case for fast setup on tour or in the studio

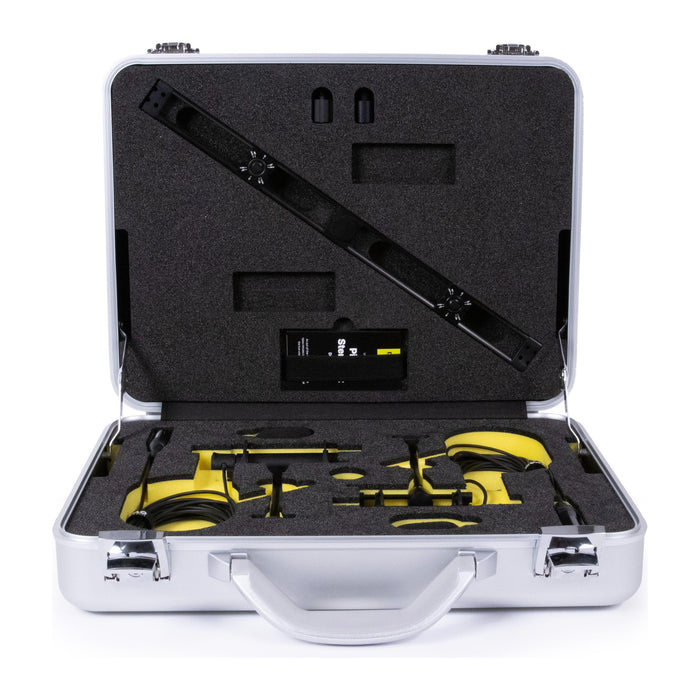

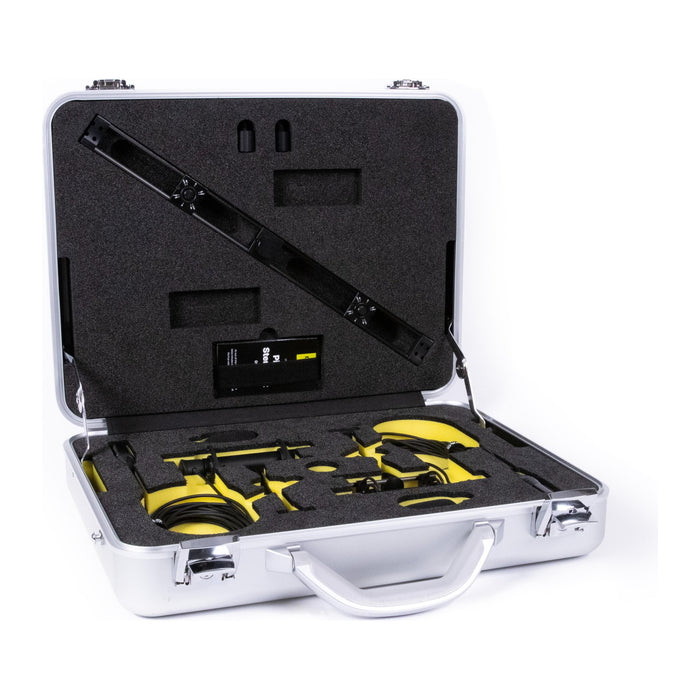

What's in the Box
- 2 x DPA 2015 Wide Cardioid Microphones (selected stereo pair)
- 2 x GM1500 Gooseneck Mounts
- 2 x DAO2015 Microphone Cables with XLR
- 1 x SBO400 Lightweight Stereo Boom
- 2 x DUA0020 Foam Windscreens

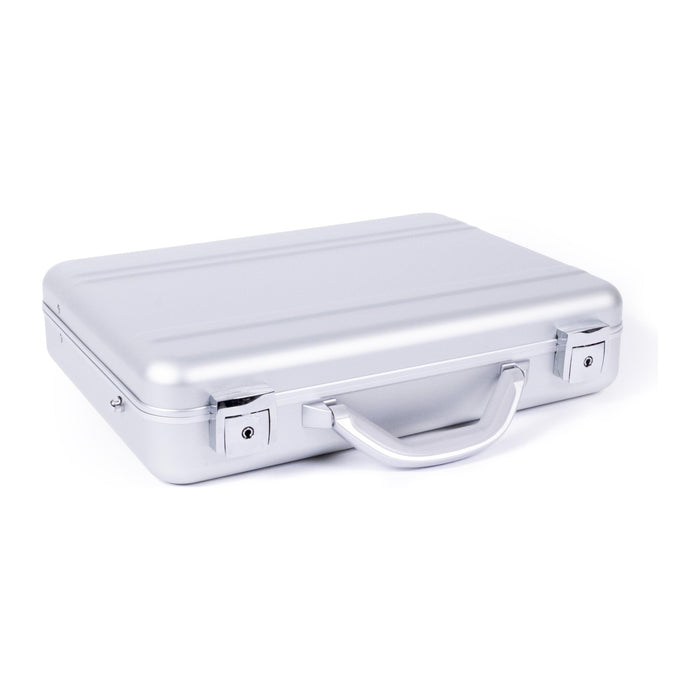

- Protective carrying case
Specifications (per 2015 microphone)
| Polar pattern | Wide cardioid |
| Principle of operation | Pressure gradient |
| Cartridge type | Pre-polarised condenser |
| Frequency response | 20 Hz – 20 kHz |
| Effective frequency range (±2 dB at 30 cm) | 40 Hz – 18 kHz |
| Sensitivity (nominal, ±2 dB at 1 kHz) | 12 mV/Pa (-37.7 dB re 1 V/Pa) |
| Pair matching (sensitivity at 1 kHz) | ±1 dB |
| Equivalent noise level | Typ. 18 dB(A), max. 20 dB(A) |
| THD < 1% | 147 dB SPL RMS (150 dB SPL peak) |
| Max SPL (THD 10%) | 150 dB SPL RMS (153 dB SPL peak) |
| Dynamic range | Typ. 132 dB |
| Rated output impedance | 60 Ω |
| Minimum load impedance | 2 kΩ |
| Max output voltage (RMS) | 8.7 V (21 dBu) |
| Cable drive capability | 100 m |
| CMRR | > 60 dB |
| Power | P48 phantom power, 0.7 mA |
| Connector | XLR-3M |
| Dimensions | Ø19 mm x 94 mm (17 mm capsule) |
| Weight | 83 g |
| Finish | Matte black |
| Operating temperature | -40°C to 45°C, up to 90% RH |
