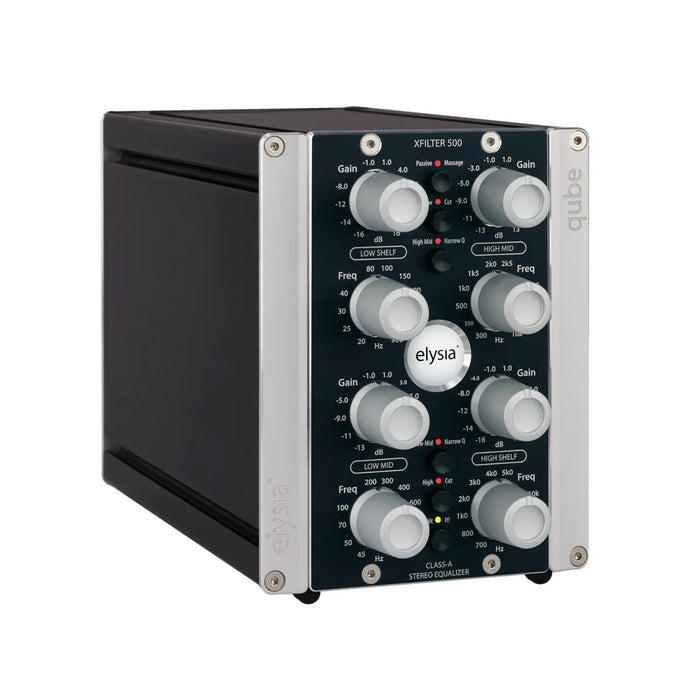

Elysia XFILTER Qube - Ultra-Portable Stereo Equalizer
Elysia XFILTER Qube Stereo EQ
A magically linked stereo equalizer in the box. With the xfilter 500 included, there is no excuse for bad ingredients like lost frequencies, flat sounds, and flavorless audio soups. Now you have all the great transparency and the pure spicy Class-A analog sound at your fingertips for an affordable price. The xfilter 500 is a true linked stereo EQ in the 500 series format. It gives you the expensive sound of an all class-A equalizer in a surprisingly affordable package, with a precise stereo image based on computer-selected, stepped potentiometers and low tolerance film capacitors. With its exceptionally open sound, straight transient projection and solid punch, the xfilter 500 is the perfect match for your xpressor|neo – or any other piece of outboard gear!
Elysia xfilter qube Features
- 100% Class-A Topology
- True Stereo Operation
- Resonance High & Low Cut Filters
- Switchable Filter Quality
- Additional Passive High-Band
- Stepped Controllers
- Computer-Selected Potentiometers
- Special Low Tolerance Capacitors
- Ground Layer Shield
Elysia xfilter qube Specifications
- Frequency response: <10 Hz – 400 kHz (-3,0 dB)
- THD+N @ 0 dBu, 20 Hz – 22 kHz: 0,006 %
- THD+N @ +10 dBu, 20 Hz – 22 kHz: 0,01 %
- Noise floor, 20 Hz – 22 kHz (A-weighted): -98 dBu
- Dynamic range, 20 Hz – 22 kHz: 112 dB
- Input level: +21 dBu
- Output level: +21 dBu
- Input impedance: 10 kOhm
- Output impedance: 68 Ohm
- Dimensions: 104 mm x 137 mm x 212 mm (W x H x D)
- Weight: 3.2 lbs / 1.46 kg (incl. Module)
- Power consumption: 10 Watts
- Potentiometers: 41 Steps
