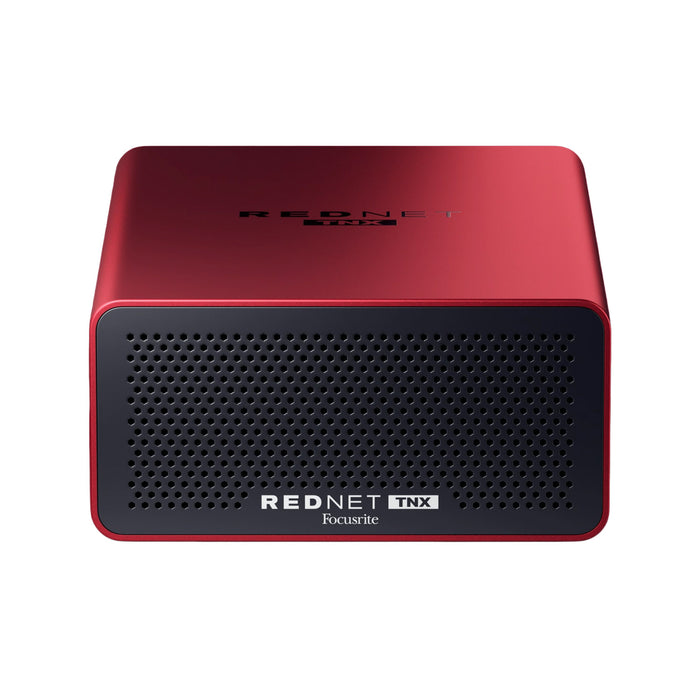

Focusrite RedNet TNX - Portable Dante interface
Introducing RedNet TNX
A portable Dante® interface that delivers high channel counts, ultra-low latency, and powerful audio workflows via a single Thunderbolt™ connection.
- Powerful, portable audio workflows: 128x128 channels at 24-bit/192kHz with ultra-low latency — perfect for large sessions and immersive formats like Dolby Atmos.
-
Seamless Thunderbolt™ connectivity: Connect to any compatible computer
with one cable; quick swaps between users make it ideal for shared
workspaces.
-
Upgradable with Dante Ready™: Expand to 256x256 channels at 24-
bit/96kHz with an optional Dante Ready™ upgrade.
-
Dual Ethernet RJ-45 connections: Supports switched or redundant mode
for flexible, reliable network connectivity in critical situations.
-
Broadcast-Ready AoIP support: Compliant with AES67 and SMPTE ST 2110
(DDM required) for broadcast and pro audio standards.
-
Windows and macOS compatible: Works with Thunderbolt™-equippedWindows (Intel) and macOS (Intel & Apple Silicon) systems.
- Simple integrated network control: Manage everything via a single-cable connection with the built-in network interface.
- Easy integration: Dual Thunderbolt™ ports (15W each) support daisychaining multiple devices, securable with Sonnet ThunderLok™ retainer clips.
- Rack shelf-mountable: Secure with M5 x 12mm screw threads underneath.
- Award-winning support: Backed by Focusrite’s three-year warranty and 24/7/365 technical support
Upgradable with Dante Ready™
Meet the demands of high channel count sessions
For commercial recording studios and music production facilities, RedNet TNX delivers performance, flexibility, and scalability, with up to 256x256 channels of uncompressed, highresolution audio at ultra-low latency.
Out of the box
- Inputs and outputs: 128x128 channels
- Sample rate: 192kHz
- Bit depth: 24-bit
- Meet the demands of high channel count sessions
Dante Ready™ upgrade
- Inputs and outputs: 256x256 channels
- Sample rate: 96kHz
- Bit depth: 24-bit
- One-time license upgrade via Audinate’s
- Dante Activator platform for ~ £200
Drivers
Dedicated drivers are vital to ensure your RedNet TNX device works seamlessly with your computer. They enable high-channel audio over Dante, ultra-low latency, and full compatibility with your DAW, unlocking the true power of RedNet TNX.
Windows Driver
- Latency performance on-par with RedNet PCIeNX
- Compatible with Intel systems with a Thunderbolt 3, 4 or 5 port
- ASIO multi-client support
- WDM support (up to 8 stereo pairs)
macOS Driver
- Compatible with Intel and Apple Silicon (Mx) systems
- Latency performance on-par with RedNet PCIeNX
Included software
RedNet Control
RedNet Control is a software utility for managing all
RedNet devices on a Dante network. It allows full control over device settings like sample rate and network configuration, and features a tabbed interface for easy organisation. With support for up to 600 devices, it enables real-time monitoring, customisable layouts, and logical grouping, making it ideal for multi-location setups.
With RedNet Control and RedNet TNX, you can meter up to 128x128 channels in a 1x1 tab, or 64x64 channels in a 2x3 or 3x4 tab, offering flexible monitoring options for your RedNet system.
