JoeCo BBR1D 24ch BlackBox Recorder - AES/EBU and Unbalanced I/O

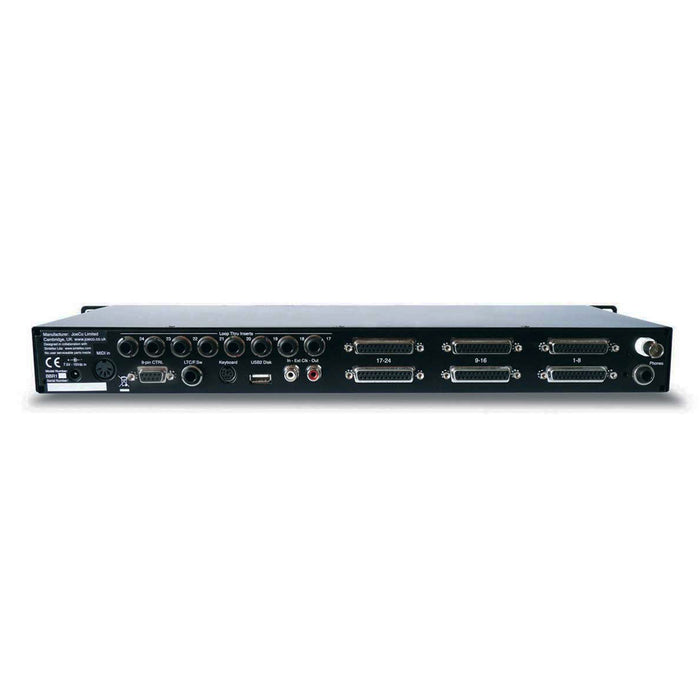

The 24 channel JoeCo BLACKBOX BBR1D multi-track digital recorder is the trusted choice of professionals using a digital mixing console with AES/EBU I/O. Three 25-way female D-type connectors, each carrying 8 channels of inputs and outputs, can be connected directly into the digital mixer to capture and return the signals without any additional A-D conversion, giving 12 stereo channels of AES/EBU inputs and 12 stereo channels of AES/EBU outputs. Analogue inputs are also still available (switchable). All other BLACKBOX Recorder features remain unchanged.
The AES/EBU interfaces can operate at up to 96kHz and conform to the AES standard (AES-3:2003). It is also possible to daisy-chain multiple BBR1D units together to create a larger system.
All BLACKBOX Recorders are designed and built to exacting standards with rugged construction and a suite of unique multi-track audio capture features. The choice of professional users, the BBR1D multi-track digital recorder is the solution the professional audio industry chooses and trusts.
JoeCo BBR1D Specifications:
BBR1D Specific
- AES3 (2003) i/o via 3 x 25way D-sub connectors – upper row. (Yamaha format pin out standard).
- Word clock input on BNC. Unbalanced analogue as BBR1U (cable looms not supplied)
- Loop through outputs as BBR1U available on analogue i/o only. Power: 30W PSU supplied. Other connectors as BBR1U
General Specifications
- Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
- Bit depths: 16bit; 24bit
- Disk interface: USB2
- Format: FAT32
- File type: Broadcast WAV (BWAV)
-
Media:
- USB2 hard disk (7200rpm recommended)
- USB2 flash drive - 200x minimum (except for MADI and DANTE systems which have more demanding data rates)
- SHDC (Class 10 with suitable adapter except MADI and DANTE)
-
Monitoring:
- 1 x 1/4” TRS jack socket
- headphone mix/solo
- Physical: 19” rack mounted 1U
- Dimensions: (425mm x 150mm x 44mm)
- Weight: < 2.4kg
Control and Synchronisation
- MIDI: 1 x 5-pin DIN (open loop) – MIDI time code (MTC) and MIDI machine control (MMC) protocol
-
LTC: 1 x 1/4” TRS jack socket:
- Frame rates supported: 30fps, 29.97drop fps, 29.97non-drop fps, 25fps, 24fps, 23.98fps
- Machine control: 1 x 9-pin D, SONY PII protocol
-
Audio clock synchronisation:
- 2 x RCA sockets
- AES3 / SPDIF Format, also used for communications to slave units
- Footswitch: momentary switch on ring of LTC TRS socket
- Keyboard: 1 x mini DIN PS2 connector, Standard 102 key
- Power: 9v – 16V dc (< 25W). 2.1mm dc inlet. PSU supplied
Analogue Inputs
- Levels: -10dBu / +4dBu switchable
- Max input level: +22dBu = 0dBFS
- A-D conversion: 24bit, 96kHz
- 106dB S/N, 96dB THD+N (typical A-weighted)
Analogue Outputs
- Levels: -10dBu / +4dBu switchable
- Max output level: +22dBu = 0dBFS
- D-A conversion: 24bit, 96kHz
- 106dB S/N, 94dB THD+N (typical A-weighted)
