Merging Technologies HAPI MKIII 128 Ch MADI Card - MADI128V3

Merging Technologies HAPI MKIII 128 Ch MADI Card - MADI128V3

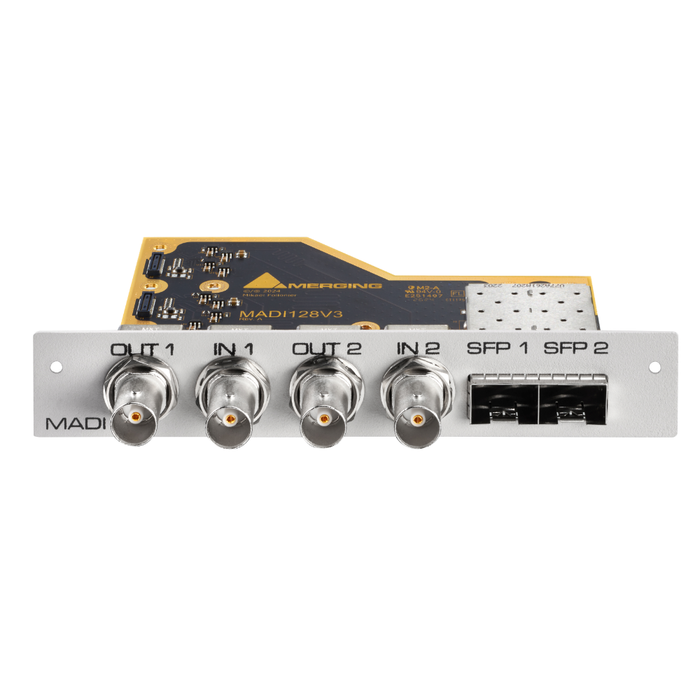

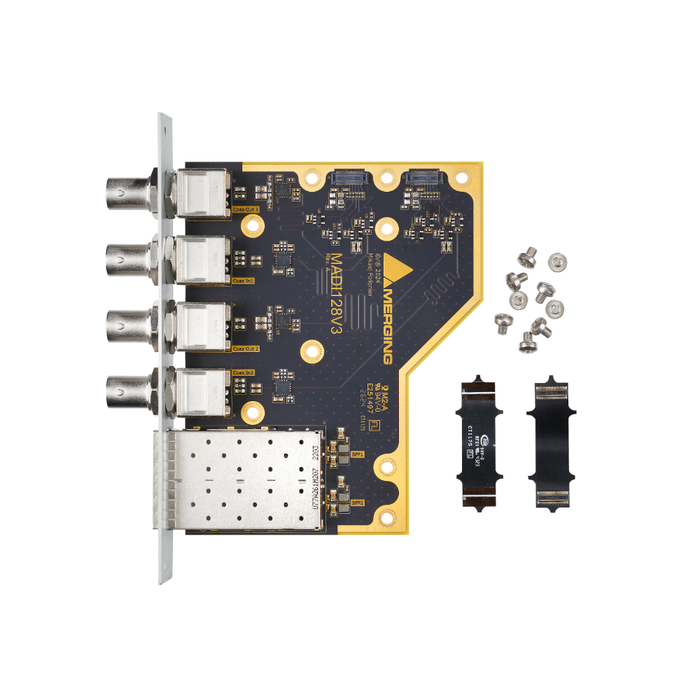

The Hapi MkIII MADI128V3 expansion card has double the total channel count (up to 128 inputs and outputs @1FS) compared to the 64 channels available in the previous generation MADI card.

The MADI128V3 is also equipped with two Small Form-factor Pluggable (SFP) cages for fitting suitable SFP modules.

Merging MADI128V3 Specifications:

• Two Pairs of MADI Coaxial inputs and outputs (4 x BNC connectors)

• 128 discrete channels of digital input and output (extended mode) at 1FS

• Up to 384 kHz sampling rate

• 24-bit resolution

• Fully compliant MADI (AES 10-1991)

• 2 x SFP cage slots

• Compatibility With Hapi

• The MADI128V3 card is only compatible with the Hapi MkIII and not with any older generation of Merging devices.

Coaxial and SFP IO

• IO Channels at 44.1/48kHz:    128

• IO Channels at 88.2/96kHz:    64

• IO Channels at 176.4/192kHz:    32

• IO Channels at DXD/384kHz:    16
