Merging Technologies HAPI MKIII 8 Ch Mic/Line AD card with Direct Outs

Merging Technologies HAPI MKIII 8 Ch Mic/Line AD card with Direct Outs

by Merging Technologies
£2,112.00 inc. VAT
ex. VAT
SKU SMEGADO8V3S

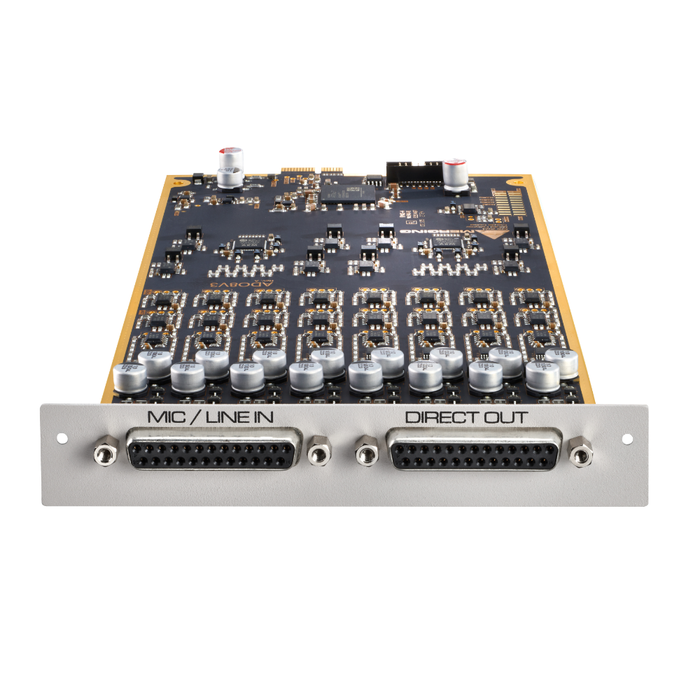

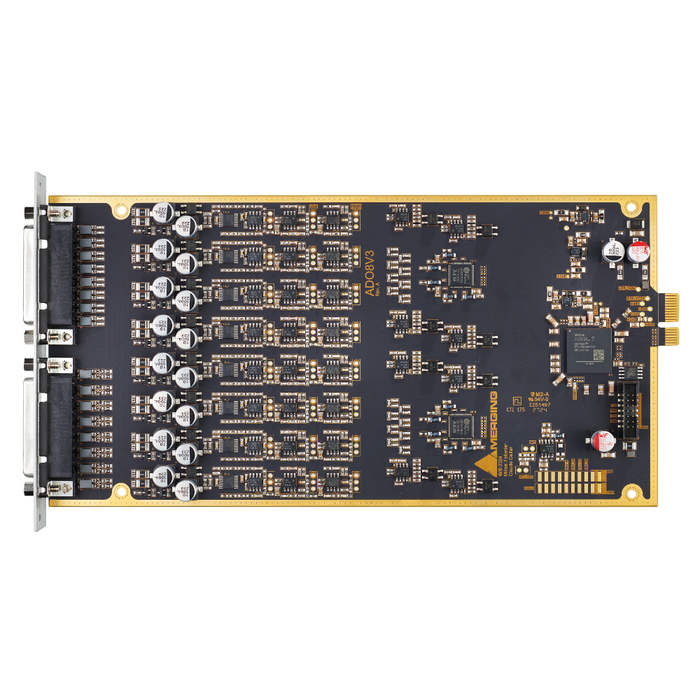

Merging Technologies HAPI MKIII 8 Ch Mic/Line AD card with Direct Outs

The Merging ADO8V3 card for Hapi MkIII is available in two different models, standard and premium. The standard version operates up to 192kHz sample rate and if you want to go higher, the premium version operates up to DXD/DSD256. This card provides 8 channels of exceptionally transparent Mic/Line inputs with up to 78 dB of gain. It also includes analogue direct outs (post-mic-pre) to provide a splitter to feed another recorder or monitor desk.

Design
These remotely controlled Mic/Line input cards are 3rd-generation Dual-Gain topology designs, taking inspiration from the outstanding Anubis Preamps, showing zero tolerance to any compromise in the audio quality. These cards are a new benchmark in analogue circuit design, providing an additional Line level post-Mic-pre “Direct Out” output.

Available in models that work up to 192kHz (ADO8V3S) and DXD/DSD256 (ADO8V3P).

Merging Technologies ADO8V3 Features:

  • 8 x exceptionally transparent pre-amplifiers
  • Remote/Local switch to Line Level on a per channel basis
  • Completely accessible remotely for all parameter changes
  • Phantom Power/Polarity Invert/Low Cut/Impedance switchable per channel
  • Removes the need for DI boxes
  • 2x 25-pin Sub D connector
  • Dynamic range of 139dB (A-weighted, typ)
  • Auto-mute circuitry for “no-pop” power cycling
  • Compatibility With Hapi
  • All analogue I/O V3 cards are compatible with the HAPI MkIII and the HAPI MkII but not compatible with the Horus or original HAPI.

Compatibility With Hapi
All analogue I/O V3 cards are compatible with the HAPI MkIII and the HAPI MkII, but not compatible with the Horus or original HAPI.

Merging Technologies ADO8V3 Specifications:

Mic Pre-amp + ADC

  • Mic Pre Max Input (Mic+Pad/Mic/Boost)    +24 dBu/ +12 dBu/ +0 dBu
  • Mic Pre Max Input (Pad On; Pad Off)    > 3 kΩ; 10.4 kΩ
  • Input Impedance (ZLo; ZHi)    > 3 kΩ; 10.4 kΩ
  • Dynamic Range (flat 20 Hz – 20 kHz)    > 134 dB
  • Dynamic Range (A-weighted, typ)    136 dB
  • Gain Range (Software Controlled)    0 dB to +66 dB
  • Gain Precision    ±0.2 dB
  • Gain Step    0.5 dB
  • THD+N Pre + A/D (20 Hz – 20 kHz) @ -2 dBFS    -110 dB (0.00031%)/-112 dB (0.00025%)
  • Interchannel Crosstalk @ 1 kHz, typ.    < -130 dB
  • Interchannel Crosstalk @ 20 Hz – 20 kHz    < -105 dB
  • EIN @ > 40 dB GAIN (150 Ω Source Impedance, A-weighted)    -128 dBu
  • Common Mode Rejection Rate @ 1 kHz, typ.    75 dB (up to -20 dBFS)
  • Common Mode Rejection Rate @ 20 Hz – 20 kHz)    > 60/65 dB (up to -20 dBFS)
  • Phantom Power Switch (Software Switchable Per Channel)    +48 Volts
  • Phase Reverse Switch (Software Switchable Per Channel)    Yes
  • Low Cut Filter (Software Switchable Per Channel)    -12 dB/Octave, 80 Hz

Line Input

  • Frequency Response +0/-0.1 dB @ fs = 44100 Hz    5.7 Hz – 20.5 kHz
  • Frequency Response +0/-1.0 dB @ fs = 44100 Hz    1.8 Hz – 21.0 kHz
  • Frequency Response +0/-0.1 dB @ fs = 96000 Hz    5.7 Hz – 43.9 kHz
  • Frequency Response +0/-1.0 dB @ fs = 96000 Hz    1.8 Hz – 45.4 kHz
  • Frequency Response +0/-0.1 dB @ fs = 192000 Hz    5.7 Hz – 42.1 kHz
  • Frequency Response +0/-1.0 dB @ fs = 192000 Hz    1.8 Hz – 64.7 kHz
  • Frequency Response +0/-0.1 dB @ fs = 384000 Hz    5.7 Hz – 40 kHz
  • Frequency Response +0/-1.-0 dB @ fs = 384000 Hz    1.8 Hz – 75 kHz
  • Max Line Input for 0 dBFS    +24 dBu
  • Input Impedance    10.4 kΩ
  • Dynamic Range (Flat 20 Hz – 20 kHz), ref +24 dBu    > 136 dB
  • Dynamic Range (A-weighted, typ), ref +24 dBu    139 dB
  • THD+N Line + A/D (1 kHz) @ -2 dBFS, typ.    -110 dB (0.00031%)
  • THD+N Line + A/D (20 Hz – 20 kHz) @ -2 dBFS    < -107 dB
  • Interchannel Crosstalk @ 1 kHz, typ.    -130 dB
  • Interchannel Crosstalk @ 20 Hz – 20 kHz    < -100 dB
  • Sensitivity Range for 0 dBFS (Software Controlled)    -42 dBu to +24 dBu
  • Gain Precision    ±0.2 dB
  • Gain Step    0.5 dB
  • Common Mode Rejection Rate @ 1 kHz, typ.    75 dB (up to -20 dBFS)
  • Common Mode Rejection Rate @ 20 Hz – 20 kHz    > 65 dB (up to -20 dBFS)
  • Group Delay (1FS)    5/fs
  • Group Delay (2FS)    5/fs
  • Group Delay (4FS)/Premium (8FS)    6/fs/7/fs

ADO8V3 Direct Out

  • Max Direct Output level typ.    +24 dBu/ +12 dBu/ +0 dBu
  • Output Impedance (Differential)    < 100 Ω
  • THD+N (1 kHz) @ +10dBu    < -110 dB (0.00031 %)
  • Input Connector Pinout    DB-25 / AES59 (Tascam Ana.)
  • Direct Output Connector Pinout    DB-25 / AES59 (Tascam Ana.)
