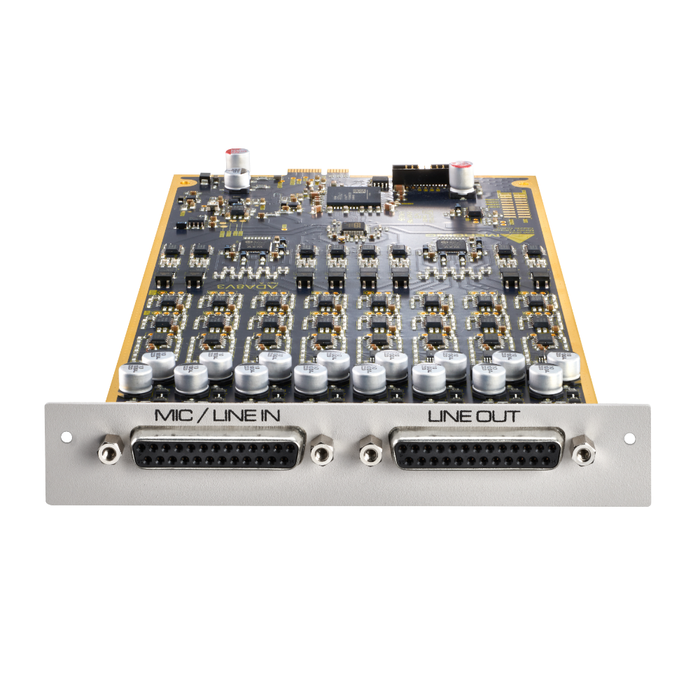

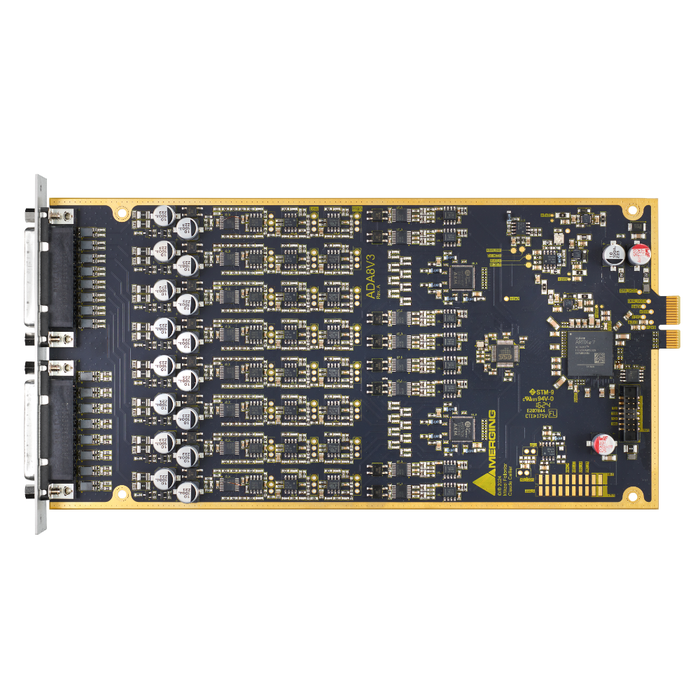

The Merging ADA8V3 card for HAPI MkIII is available in two different versions, standard and premium. The standard version can operate at sample rates up to 192kHz and for anything higher, the premium model operates up to DXD/DSD256. This world class card provides 8 channels of Mic/Line inputs and 8 channels of analogue Line out audio perfection.
Analogue > Digital > Analogue
These remotely controlled Mic/Line Input and Output cards are 3rd generation Dual Gain topology designs, inspired from the Anubis’ outstanding Preamps, that show zero tolerance to any compromise on the audio quality.
Available in two models that operate up to 192kHz (ADA8V3S) and DXD/DSD256 (ADA8V3P). Both the ADA8V3S and its premium variant can be added to a HAPI MkIII to achieve up to 16 channels of analogue in/out.
Merging Technologies ADA8V3 Features:
- 8 exceptionally transparent pre-amplifiers
- Remote/Local switch to Line Level on a per channel basis
- Completely accessible remotely for all parameter changes
- Phantom Power/Polarity Invert/Low Cut/Impedance switchable per channel
- Dynamic range of 139dB (A-weighted, typ) on the Line inputs
- Auto-mute circuitry for “no-pop” power cycling
- Digitally controlled output trims for line up procedures
- Dynamic range of 124dB (ADA8S), 125dB (ADA8P) (A-weighted, typ.) on the Line outputs
Compatibility With HAPI
All analogue I/O V3 cards are compatible with the HAPI MkIII and the HAPI MkII but not compatible with the Horus or original HAPI.
Merging Technologies ADA8V3 Specifications:
Mic Pre-amp + ADC Section
- Mic Pre Max Input (Mic+Pad/Mic/Mic+Boost) +24 dBu/+12 dBu/+0 dBu
- Input Impedance (Differential, Software Switchable per Channel) 3 kΩ / 10.4 kΩ
- Frequency Response +0/-0.3 dB @ fs = 48 kHz 9 Hz – 22 kHz
- Frequency Response +0/-0.3 dB @ fs = 96 kHz 9 Hz – 49 kHz
- Frequency Response +0/-0.3 dB @ fs = 192 kHz 11 Hz – 94 kHz
- Dynamic Range (A-weighted, typ.), ref +12 dBu 137 dB
- Dynamic Range Mic Boost (A-weighted, typ.), ref 0 dBu 128 dB
- Gain Range (Software Controlled) 0 dB to + 66 dB
- THD+N Pre + A/D (20 Hz – 20 kHz) @ -2 dBFS < -111 dB (0.00028%)
- Interchannel Crosstalk @ 1 kHz < -130 dB
- EIN @ > 40 dB Gain (150 Ω Source Impedance, A-weighted) < -127 dBu
- Common Mode Rejection Rate (20 Hz – 20 kHz) < 75 dB
- Phantom Power (Software Switchable Per Channel) +48V
- Polarity Invert (Software Switchable Per Channel) Yes
- Low Cut Filter (Software Switchable Per Channel) -12 dB/octave, 80 Hz
Line Input
- Max Line Input for 0 dBFS +24 dBu
- Input Impedance (Differential) 10.4 kΩ
- Dynamic Range (A-weighted, typ), ref + 24 dBu 139 dB
- THD+N Line + A/D (20 Hz – 20 kHz) @ -2 dBFS < -111 dB (0.00028%)
- Interchannel Crosstalk @ 1 kHz, typ < -135 dB
- Sensitivity Range for 0 dBFS (Software Controlled) -42 dBu to +24 dBu
- Gain Step 0.5 dB
- Common Mode Rejection Rate (20 Hz – 20 kHz) > 70 dB
- Connector Pinout DB-25/AES59 (Tascam Ana.)
-
Line Output
- Max Output Level Software Switchable for 0 dBFS +24 dBu/+18 dBu +0/-0.5 dB
- Frequency Response +0/-0.3 dB @ fs = 48 kHz 0 Hz – 22 kHz
- Frequency Response +0/-3 dB @ fs = 96 kHz 0 Hz – 46 kHz
- Frequency Response +0/-3 dB @ fs = 192 kHz 0 Hz – 92 kHz
- Output Impedance (Differential) < 80 Ω
- Dynamic Range (A-weighted, typ.) 122 dB/124 dB (ADA8V3S), 124 dB/126 dB
- (ADA8V3P)
- THD+N (1 kHz) @ 0 dBFS < -117 dB (0.00014%)
- Interchannel Crosstalk @ 1 kHz < -139 dB
- Connector Pinout DB-25/AES59 (Tascam Ana.)
Latencies
- Input Latency at 44.1/48 kHz 8 Samples
- Input Latency at 88.2/96 kHz 8 Samples
- Input Latency at 176.4/192 kHz 8 Samples
- Input Latency at DXD/384 kHz 10 Samples
- Output latency at 44.1/48 kHz 9 Samples
- Output latency at 88.2/96 kHz 9 Samples
- Output latency at 176.4/192 kHz 9 Samples
- Output latency at DXD/384 kHz 9 Samples
