Neumann KU 100 Binaural Dummy Head Microphone - Used Ex-Hire

Neumann KU 100 Binaural Dummy Head Microphone - Used Ex-Hire

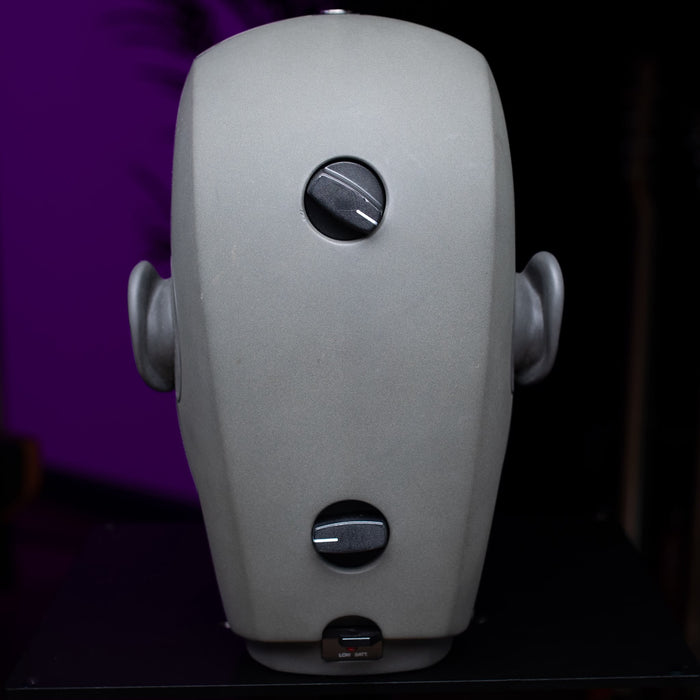

Condition: Used ex-hire unit with a 90-day warranty. Please see the photos for cosmetic condition.

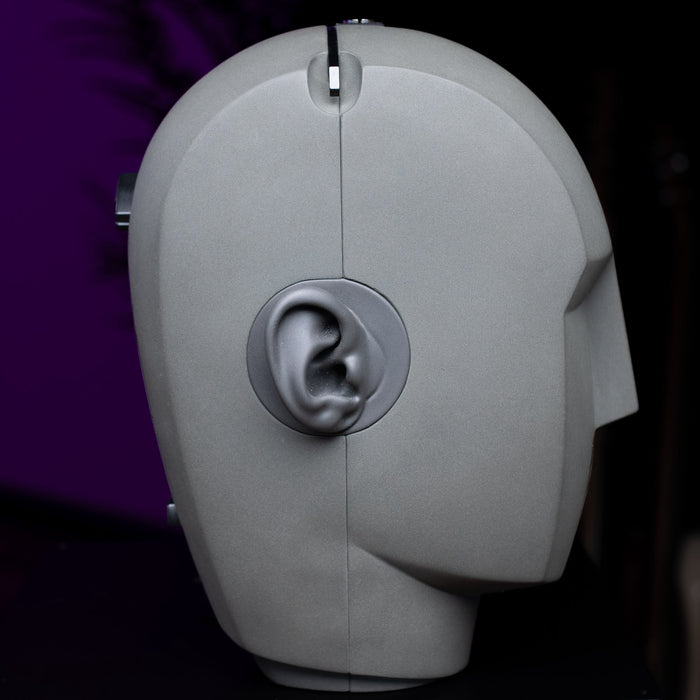

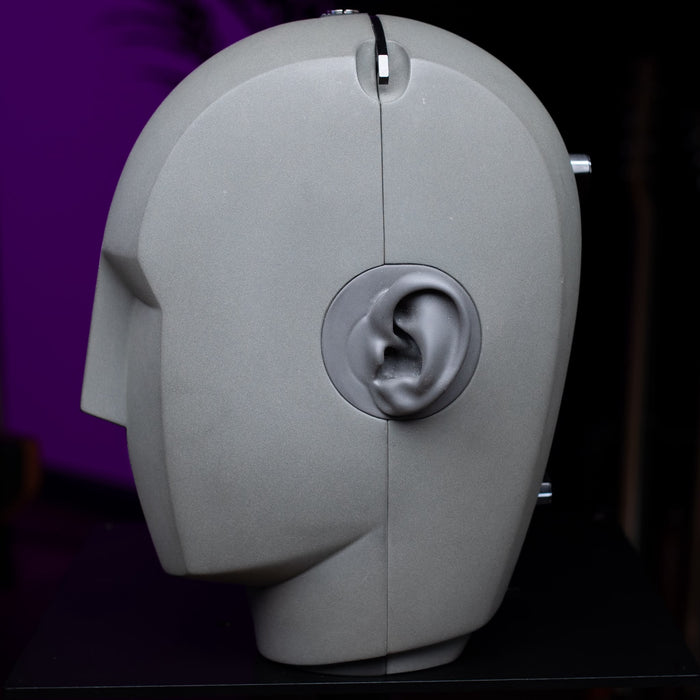

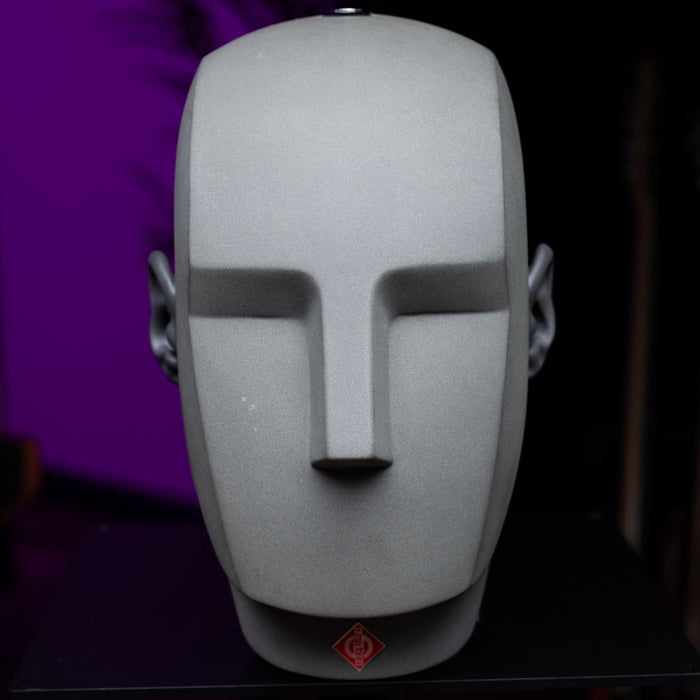

The Neumann KU 100 Binaural Dummy Head Microphone captures sound the way a listener hears it. Two omnidirectional condenser capsules sit inside lifelike ears on a head-shaped body, so recordings played back on good headphones place the listener at the recording position, with convincing left-right, front-back and height cues and a natural sense of the room around them.

Unlike earlier dummy heads, the KU 100 is diffuse-field equalised, so its recordings also translate well over loudspeakers, giving a stereo image comparable to a conventional pair but with extra depth and space. It is widely used for audio drama, classical and ambient music, immersive and VR content, and for acoustic measurement and noise analysis work.

Transformerless electronics keep self-noise low and allow up to 135dB SPL, or 145dB with the internal pad engaged. It can run from P48 phantom power, its internal batteries or an external mains supply.

Features

• Binaural dummy head with a microphone capsule built into each ear
• Optimised for headphone playback and compatible with loudspeaker playback
• Flat diffuse-field frequency response for a natural, uncoloured sound
• Transformerless circuitry for low noise and distortion
• Switchable −10dB pre-attenuation, affecting both channels
• Three-position low cut: linear, 40Hz or 150Hz
• Balanced 5-pin XLR stereo output plus unbalanced BNC outputs
• Three power options: P48 phantom, internal AA batteries or external PSU
• 5/8"-27 stand thread at the top and bottom, with adapters for 1/2" and 3/8" studs

What's Included

• 1 × Neumann KU 100 dummy head

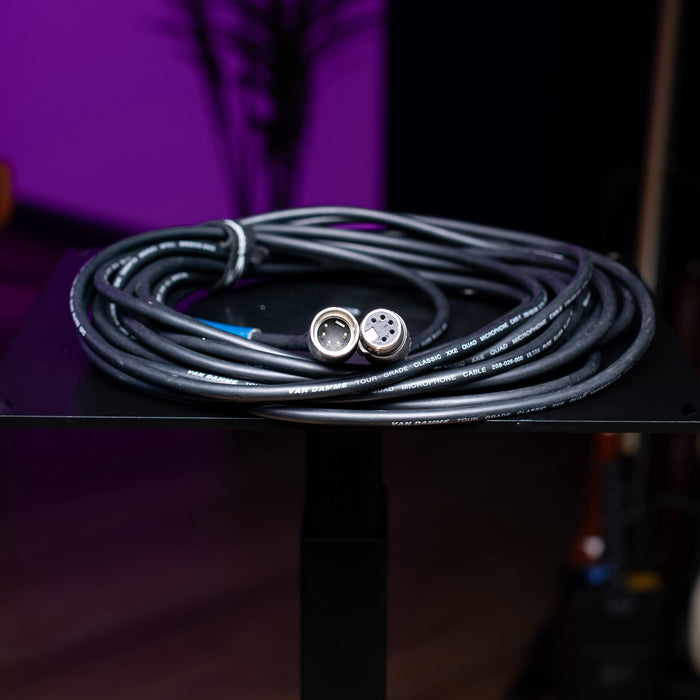

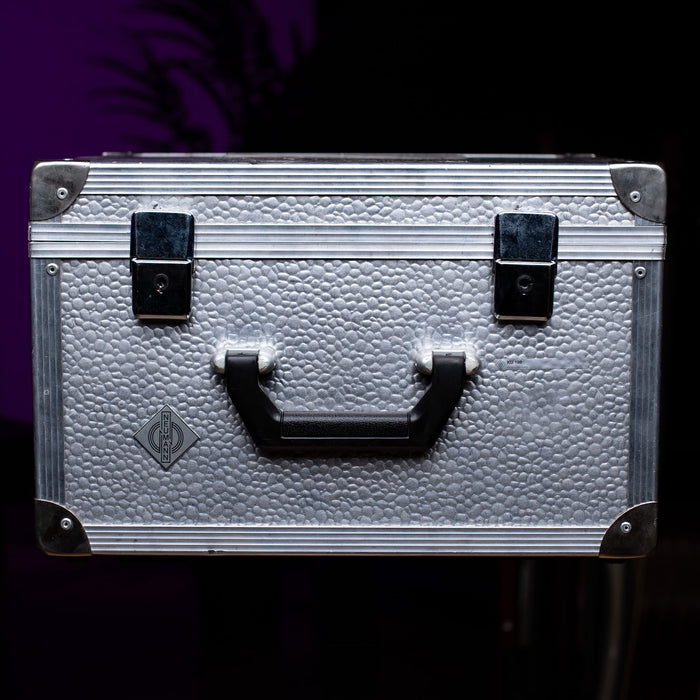

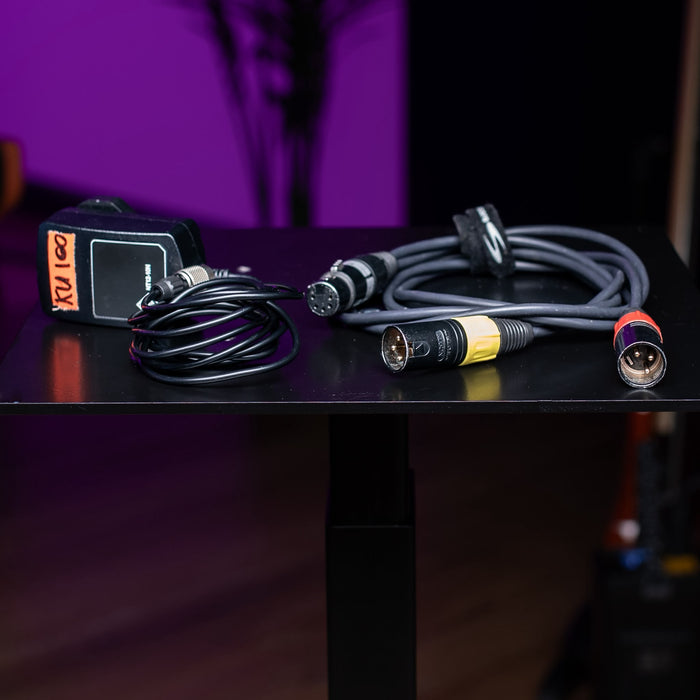

• Original case, cables or power supply

Specifications

• Operating principle: Pressure transducer
• Directional pattern: Ear (binaural)
• Frequency range: 20Hz to 20kHz
• Sensitivity at 1kHz into 1kΩ: 20mV/Pa
• Rated impedance: 50Ω balanced, 200Ω unbalanced
• Rated load impedance: 1kΩ
• Equivalent noise level: 16dB-A (29dB CCIR)
• Signal-to-noise ratio (re. 94dB SPL): 78dB A-weighted, 65dB CCIR
• Maximum SPL (THD 0.5%): 135dB, 145dB with pre-attenuation
• Maximum output voltage: 8dBu
• Power: P48 (48V ± 4V), 6 × 1.5V AA batteries, or 9V external PSU
• Current consumption (P48): 2 × 3.5mA
• Matching connectors: XLR3F / XLR5F
• Dimensions (H × W × D): 280 × 180 × 220mm
• Weight: Approx. 3.5kg without batteries
