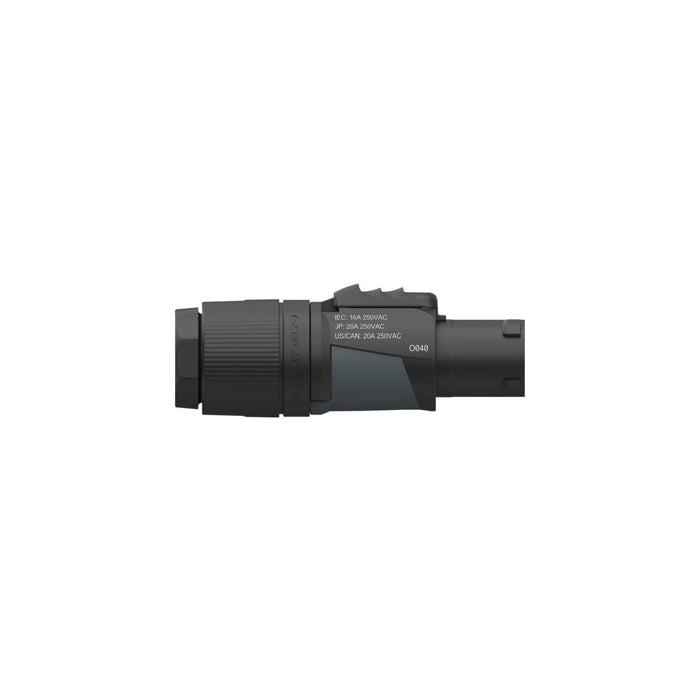

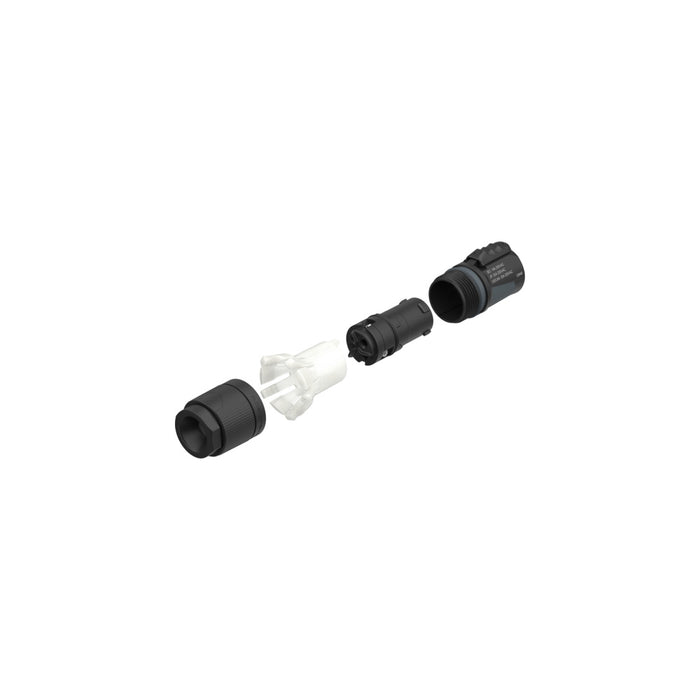

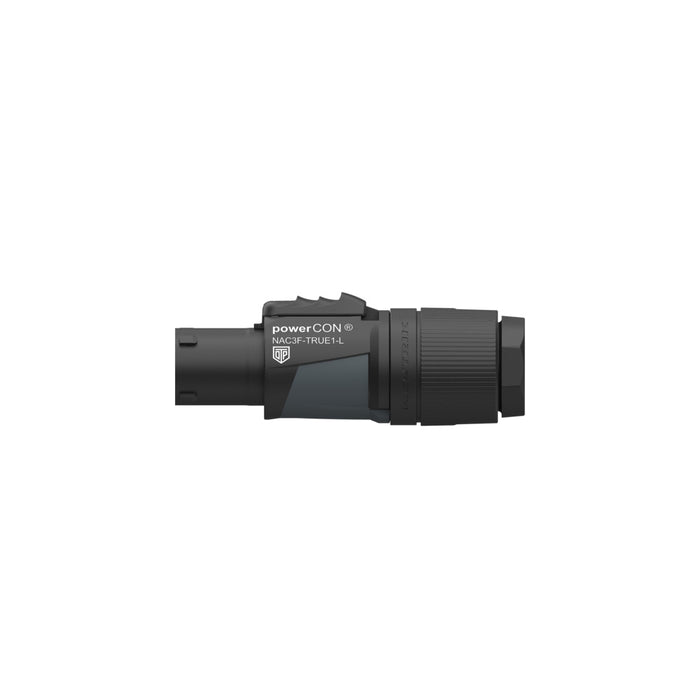

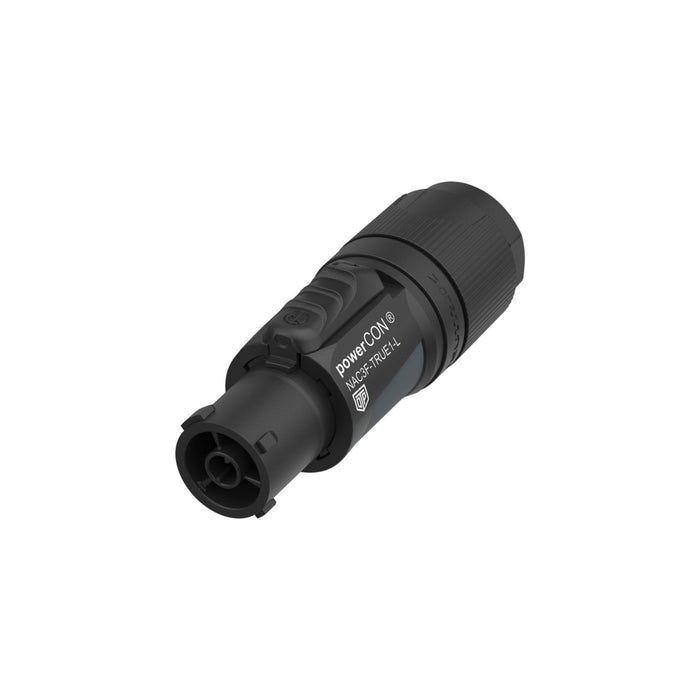

Neutrik NAC3F-TRUE1-L powerCON Mains Cable Connector Female

Neutrik NAC3F-TRUE1-L powerCON Mains Cable Connector Female

The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

Neutrik NAC3F-TRUE1-L Specifications

• Contact resistance: ≤ 2 mΩ
• Dielectric strength: 4 kVdc / 2.8 kVac
• Insulation resistance: >0.1GΩ (after damp and heat test IEC 68-2-30)
• Number of electrical contacts: 2 + PE
• Rating Europe: 16 A / 250 V AC according to EN IEC 60320-1
• Rating America: 20 A / 250 V AC according to UL 60320-1 20 A / 250 V AC according to CSA C22.2 No. 60320-1
• Cable O.D: 10 - 16 mm (0.39 – 0.63 inches)
• Lifetime: > 5000 mating cycles
• Wiresize (mm²): 1.0 – 2.5mm²
• Wiresize (AWG): 14 - 12 AWG
• Contact plating: 2 μm Ag
• Locking element: Polyamide (PA 66)
• Contacts: Copper Alloy
• Insert: Polyamide (PA 66)
• Shell: Polyamide (PA 66)
• Strain relief: Polyketon
• Flammability: UL 94 V-0
• Protection class: IP 65 / 67 (mated or with closed caps)
• UV resistance: F1 rated material withstands UV exposure
• Temperature range: -30°C to +80°C according to IEC 61984 -5°C to +40°C according to IEC 60320-1
