NST Audio VMO16 Installation Output Processor with Dante

NST Audio VMO16 Installation Output Processor with Dante

The NST Audio VMO16 brings all the benefits and experience of our live sound filters and dynamics algorithms to an installation product. The 16 inputs from the Dante network go to a full 16x16 matrix mixer allowing any Dante networked inputs to be routed to any analogue output channel. All of the 16 analogue outputs have 16 bands of parametric EQ, 48dB/ Oct high and low pass filters, up to 1.3 seconds of delay as well as our high performance, two-stage PXL limiters for high performance loudspeaker protection.

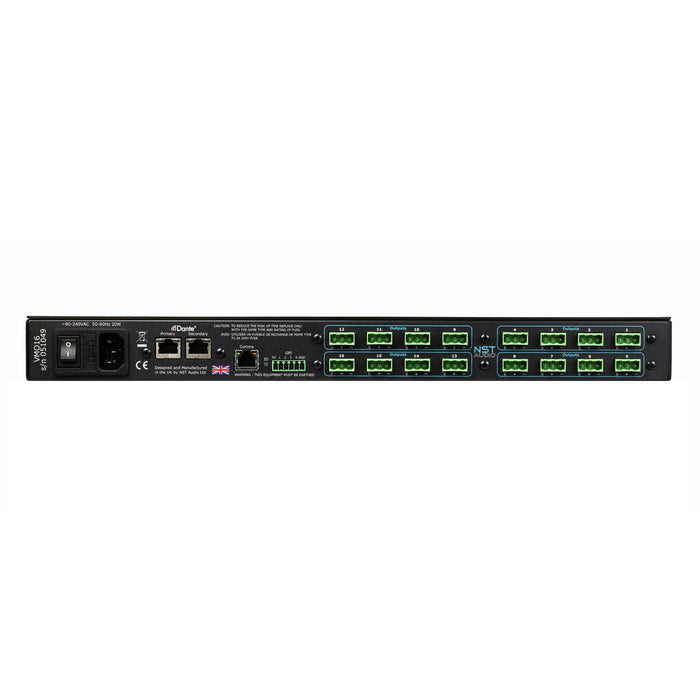

All analogue audio connections are on Phoenix-type 3-pin 5.08mm pitch connectors. The 4 GPI connections allow configurable actions such as fire alarm mutes and preset recalls. Up to 30 presets can be stored with recall options allowing selective recall combinations of input, matrix and output sections.

Our D-Net control software for PC, Mac and iPad gives you complete control over ethernet amd wifi. The VMO16 is also fully compatible with all our Venue Remotes for simple, flexible user control. Control via third party systems such as Crestron™ is available via our simple ethernet control protocol.

NST Audio VMO16 Specifications:

Analogue Outputs – 16 Electronically Balanced, Phoenix connectors
SNR: 122dB ‘A’wtd
Maximum Level: >20dBu
Source Impedance: <60R

Performance

Frequency Response: 12Hz - 32kHz +0.2dB
Dynamic Range: >119dB ‘A’wtd
THD+N (+19dB @ 1kHz): 0.00029%
Latency: 0.283mS (out analogue, 96kHz)

Processing [96kHz]

Output Parametric EQ (per channel): 16 bands – parametric, low shelf, high shelf, notch, band-pass
Output High-Pass and Low-Pass Filter (per channel) : Up to 48dB/octave (Bensen / Butterworth / Bessel / Linkwitz-Riley)
Output Gain (per channel) : -30 to +15dB in 0.1dB steps, mute, phase
Output Delay (per channel) : 0 to 1.3s in 10.4uS steps
Output Limiter (per channel) : Threshold (-50 to +22dBu), attack, release, auto attack/release option

Presets : Up to 30

Networked Audio : 16 input Dante channels on dual redundant RJ45 connectors

Comms : 100Mbps Ethernet on rear panel (RJ45 connector)

Power Requirements

3-pin IEC input, fused
90-250VAC, 50-60Hz < 20W

Dimensions

Height : 44mm (1.75inch) 1U
Depth : 170mm (6.75 inches)
Width : 482mm (19 inches)

Weight

Net : 2.2kg
Shipping : 3.4kg
