PMC PMC 6 Active 2 way monitor with a 6.5 inch bass unit - Pair - B-Stock

by PMC
£5,443.20 inc. vat
£4,536.00 ex. vat
SKU SPMCPMC6BSK
In Stock - Available for Immediate Dispatch

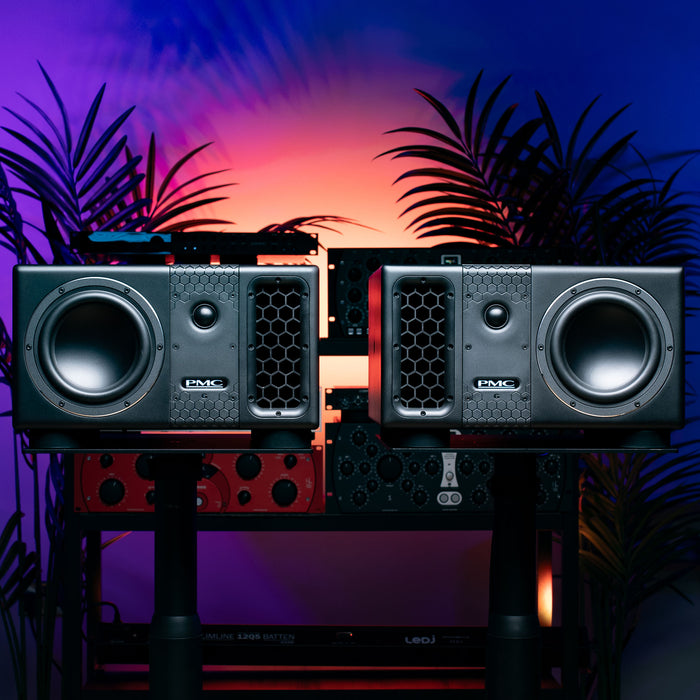

PMC PMC 6 Active 2 way monitor with a 6.5 inch bass unit - Pair - B-Stock

The new PMC6 is a brand new active two way studio monitor that is packed with innovation and provides the same sonic signature as PMC's renowned larger monitors. The PMC 6 is ideal for smaller control rooms or for use in larger immersive systems, where its astounding resolution allows critical mix decisions to be made with absolute confidence.

These speakers are B-Stock.

With 20mm of excursion, the bespoke 6-inch bass driver is designed specifically to integrate with our latest ATL™ bass-loading and Laminair™ airflow technologies. The combination outperforms most 8-inch monitors, offering unparalleled bass extension, headroom, dynamics, and low distortion at all levels. The high end is courtesy of a one-inch precision-built fabric soft-dome tweeter, with a shallow waveguide that creates wide, tonally consistent dispersion and rock-solid imaging. Both the bass and treble drivers are precisely and individually controlled by a pair of 200W ultra-low-distortion, high-damping-factor Class-D amplifiers.

Whether in portrait or landscape placement, the PMC6’s sophisticated DSP engine automatically adjusts the crossover, ensuring optimum tonal accuracy, phase and imaging.

The monitor can be calibrated using the rear-panel controls or with PMC’s intuitive browser-accessible SoundAlign™ software.
The PMC6 can be upgraded by adding a PMC8 SUB to create a full-range, free-standing PMC6 XBD system. Activating the ‘XBD’ DSP mode ensures the perfect marriage of the two units, creating a clean LF extension down to 25Hz.

Key Features

  • Active 2-way nearfield reference monitor with ATL™ bass loading
  • Frequency response: 39Hz - 25kHz (- 3dB @1m full space, on-axis)
  • Max. cont. SPL: 106dB @1m (half space value calculated as +3dB from full space measurement.
    Un-weighted input,20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • State-of-the-art Class-D amplifiers: HF 200W, LF 200W
  • Analogue/AES3 digital input (16/24-bit, 18 -192kHz sample rate)
  • Digital ‘through’ output (AES3 24-bit 96kHz)
  • SoundAlign™ network control interface for single or group EQ & settings
  • Sophisticated DSP crossover, driver protection, EQ, and delay/polarity options
  • Automatic portrait/landscape placement DSP correction
  • PMC6 + PMC8 SUB creates PMC6 XBD, with LF down to 25Hz
  • Ceiling-mount yoke allows suspension in multi-channel or immersive systems

Specifications

  • TypeActive 2-way nearfield reference monitor with ATL™ bass loading
  • Drive Unit Complement:
    • LF PMC 150mm (6”) studio 6 driver
    • HF PMC 27mm (1”) soft dome tweeter
  • Effective ATL™ Length1.8m (5.9ft)
  • Frequency Response39Hz - 25kHz (- 3dB) (@1m full space, on-axis)
  • Sensitivity+4dBu input signal = 98dB SPL @ 1m
  • Max continuous SPL106dB @1m (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • Max Peak SPL118dB @1m (Half space value calculated as +3dB from full space measurement. Unweighted input, 20-20kHz Pink Noise (IEC) with 12dB CF for 2 hours AES2-1984 duration)
  • Directivity
    • H +/-60 degrees
    • V +50/-40 degrees (-6dB off axis @10kHz)
  • Input
    • XLR switchable between analogue & digital AES3
    • Analogue input
    • - +20/+24dBu max. input level (selectable)
    • - 22K ohm input impedance
    • Digital input
    • - 16/24-bit AES3 signal, left, right or left + right- 18 - 192kHz sample rate
    • - 110 ohm input impedance
    • Expansion card slot
    • - For future connectivity upgrades
  • Output: XLR digital AES3 (fixed 24-bit @ 96kHz)
  • NetworkRJ45 for use with PMC SoundAlign web interface
  • Features:
    • Level Trim: (+/-10dB)
    • Orientation: (portrait, landscape, auto)
    • High-pass filter: (20 - 200Hz, 12dB/Oct)
    • Delay: (0 - 30mS)
    • Phase: (normal or inverted)
    • LF & HF shelving filters: (20Hz - 20kHz, +/- 10dB, Q 0.707)
    • Parametric EQ: (5 bands, 20Hz - 20kHz, +/- 10dB)
    • User presets: (3 + factory defaults)
  • Latency2.4mS
  • Amplifier power per channel
    • LF 1 x 200Wrms
    • HF1 x 200Wrms
  • Mains100 - 240VAC auto-switching, 50-60Hz (IEC C14)
  • Power consumption (idle)35W
  • Power consumption (max)400W
  • Cabinet dimensions Portrait:
    • H400mm (15.7”)
    • W 215mm (8.5”)
    • D 372mm (14.6”)
  • Cabinet dimensions Landscape
    • H 215mm (8.5”)
    • W 400mm (15.7”)
    • D 372mm (14.6”)
  • Weight11.1kg (24.4lbs) each
