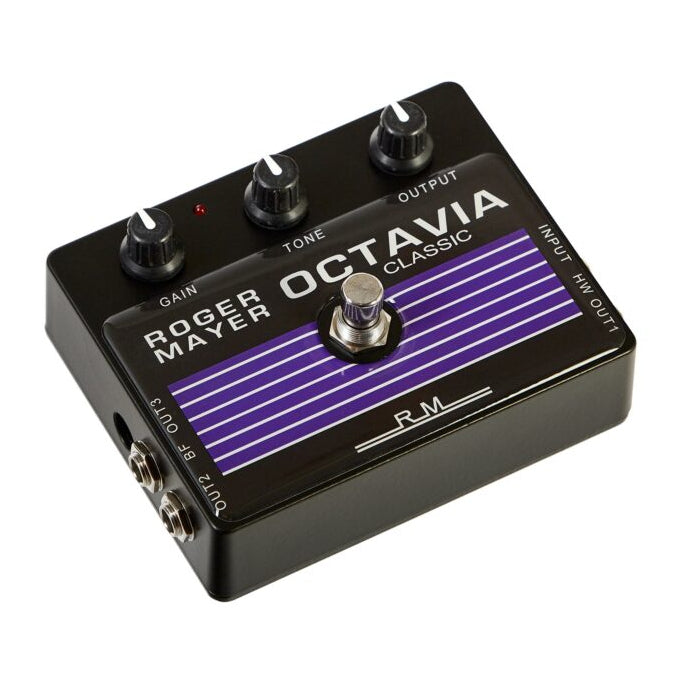

Roger Mayer Octavia Classic
Roger Mayer Octavia Classic
The Roger Mayer Octavia Classic is the pedalboard version of the octave fuzz Roger Mayer first built for Jimi Hendrix in early 1967 and heard on Purple Haze and Fire. Its analogue frequency-doubler circuit adds the upper octave and a rich harmonic fuzz that follows your playing dynamics, and is most obvious higher up the neck on the neck pickup.
Drive, Tone and Output controls make it easy to set the amount of fuzz, the brightness of the octave and the level into your amp. It comes in the Classic Series enclosure with the jacks in the usual positions, so it fits a pedalboard easily.
Three outputs cover any rig: a true hard-wire output plus two low-impedance buffered outputs that drive long cables without losing top end. Hand built in the UK by Roger Mayer and shipped from Studiocare.
Features
- The original Octavia octave-up fuzz circuit, designed for Jimi Hendrix in 1967
- Analogue frequency doubler, envelope generator and amplitude modulator
- Drive, Tone and Output controls
- True hard-wire output plus two buffered outputs for long cable runs
- Buffered outputs can also feed two amps at once
- Runs on an internal 9 V battery (150+ hours) or an external 9 V DC adapter
- Internal power filtering and reverse-polarity protection
- Compact Classic Series enclosure with jacks in the usual positions
Included
- 1 × Roger Mayer Octavia Classic pedal
Battery and power supply not included.
Specifications
- Type: Analogue octave-up fuzz
- Controls: Drive, Tone, Output
- Connections: 1 × input, 1 × hard-wire output, 2 × buffered outputs (1/4" jack)
- Power: 9 V battery or 9 V DC adapter (2.1 mm, centre negative, regulated, 50 mA or more)
- Battery life: 150 hours or more (premium alkaline)
- Dimensions: W 95 × D 120 × H 57 mm
- Weight: 350 g
