Royer R-12 - Active Ribbon Microphone

Royer R-12

Ideal for both studio recording and live sound applications, the new Royer R-12 active ribbon microphone delivers outstanding performance on electric and acoustic stringed instruments, vocals, brass, pianos and organs, as well as drums and percussion instruments at an easily affordable price point.

The R-12 is capable of extremely natural sound acquisition, making the microphone an exceptional choice for capturing an audio source just like it sounds to the ear with extraordinary sonic accuracy. Royer ribbons have always been known for their ability to deliver a warm sound capable of capturing the elusive nuances of the original performance. R-12 takes this capability to the next level.

Royer R-12 Specifications

• Acoustic Operating Principle: Electrodynamic pressure gradient with active electronics
• Polar Pattern:  Figure-8
• Generating Element:  2.5-micron aluminum ribbon
• Magnets:  Rare Earth Neodymium (Grade 52)
• Frequency Response:  30 – 15,000Hz +/- 3dB
• Sensitivity:  -36dB (re. 1V/pa)
• Switchable Pad:  -15dB
• Switchable Bass Cut:  100Hz (6dB per octave)
• Self-Noise:  < 16dB
• Output Impedance: 200 ohms, balanced
• Output Connector:  Male XLR 3-pin (Pin-2 hot)
• Rated Load Impedance: 1k-Ohms, minimum
• Maximum SPL:  > 160dB @ 1kHz, > 135dB @ 30Hz
• Power Requirements:  48-Volt Phantom Power
• Supply Current:  4mA
• Dimensions: Length including mounting base: 8 1/4” (209.5mm) x 1 3/8” (35mm)
• Weight: 462 grams (16.3oz)

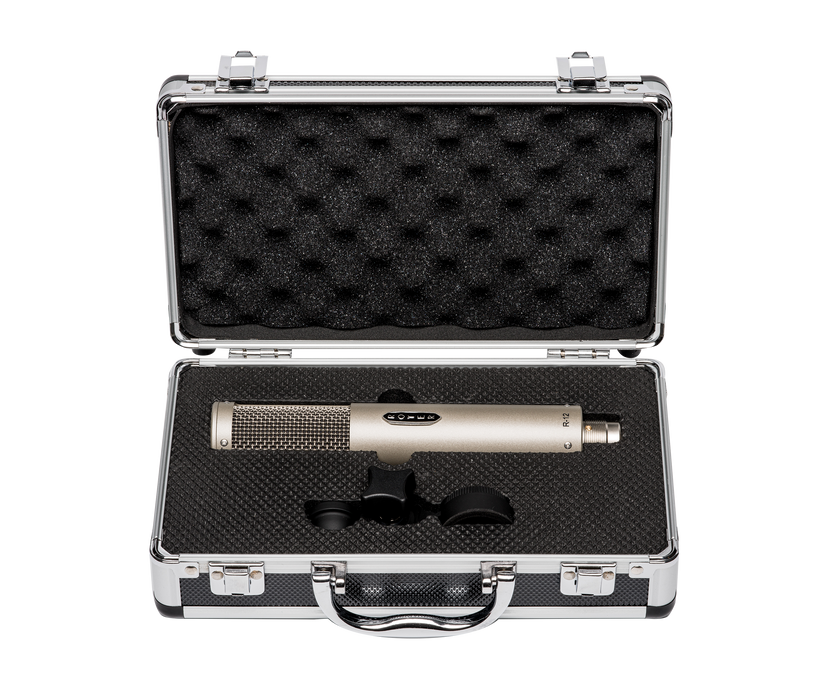

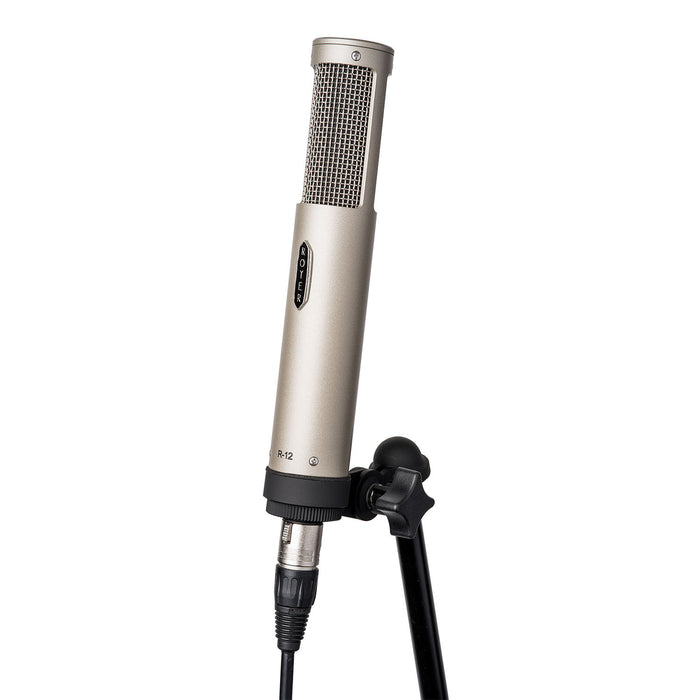

• Accessories:  Microphone Holder, Mic Sock, Carrying Case
• Microphone Warranty:  10-year full warranty coverage on materials, workmanship, and finishes to the original owner.
• Ribbon Element Warranty:  First re-ribbon free to the original owner within one year of purchase.
