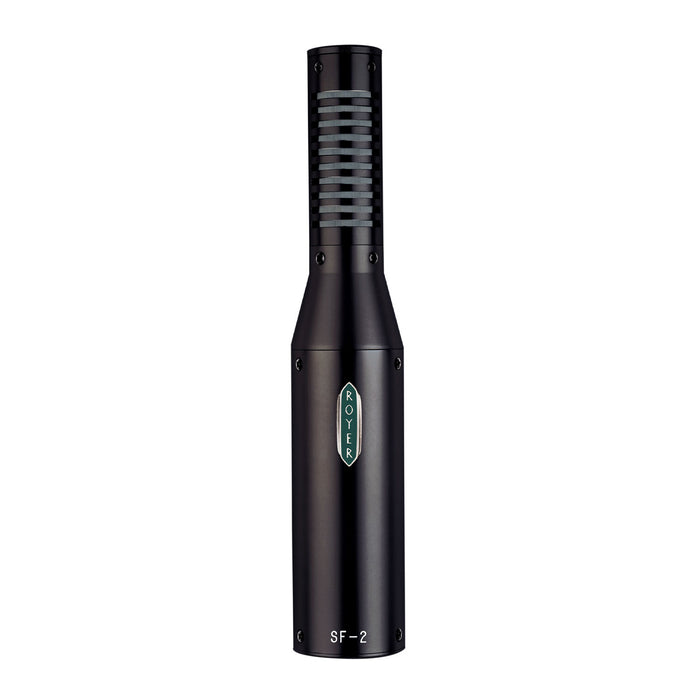

Royer SF-2 - Ultra-Compact Active Ribbon Microphone
Royer SF-2
The Royer SF-2 ribbon microphone is a phantom powered version of our original SF-1 ribbon microphone. Designed primarily for classical applications and acoustic instruments, the Royer SF-2 active ribbon mic combines high-quality audio performance with our exclusive active electronics for ribbon microphones. The Royer SF2’s output of -38 dB puts its sensitivity on par with that of phantom powered condenser microphones, allowing it to be used with a wide variety of mic pre’s regardless of gain characteristics. The unique electronics and custom designed FET’s used in the SF-2 deliver ultra-quiet operation, with self-noise of lower than 18 dB.
The Royer SF-2’s magnet/pole piece transducer structure gives a wide, uniform frequency response with no substantial peaks or dips, and the 1.8-micron ribbon element delivers superb transient response. Frequency response is excellent regardless of the angle of sound striking the ribbon and off-axis coloration is negligible.
Royer SF-2 Features
- Phantom powered circuitry provides high output and impedance matching
- High SPL capabilities (130 dB @ 70 Hz)
- No distortion up to maximum SPL rating
- Extremely low residual noise
- Ribbon element not affected by heat or humidity
- Absence of high frequency phase distortion.
- Equal sensitivity from front and back of microphone
- Consistent frequency response regardless of distance
- High efficiency toroidal transformer and gold plated output connector
- Very low magnetic leakage
- Matte Black finish reduces reflected light for live and on-camera use
Applications
- Choir
- Woodwinds, flute and other reed instruments
- Violin, cello and other stringed instruments
- Brass, string and woodwind sections
- Piano
- Harp
- Orchestra
- Acoustic Guitar, Mandolin, Banjo
- Percussion Instruments
- Vocals
- Drum Overheads
- Ambiance
Royer SF-2 Specifications
- Electrodynamic pressure gradient with active electronics.
- Polar Pattern: Figure-8
- Generating Element: 1.8-micron aluminum ribbon
- Frequency Range: 30 HZ - 15,000 HZ +/-2db
- Sensitivity: -38 dBv Ref 1 Volt per Pascal
- Output Impedance: 200 Ohms @ 1khz
- Rated Load Impedance: > 1500 Ohms
- Maximum SPL: > 130 dB SPL
- Output Connector: Male XLR 3 pin (Pin 2 Hot)
- Power Requirements: 48-Volt Phantom
- Supply Current: 4 mA
- High grade neodymium magnet assembly
- Stainless steel internal baffle and dampener
- Weight: 448 grams (15.8 oz.)
- Dimensions: 142 mm x 39mm (base) x 25mm (top)
- Finish: Matte black
