Schertler STAT-V-UNO - Electrostatic Transducer Microphone for Violin/Viola with YELLOW UNO Preamp

Schertler STAT-V-UNO - Electrostatic Transducer Microphone for Violin/Viola with YELLOW UNO Preamp

The STAT pickup system represents one of SCHERTLER’s most well-established technologies. Over the decades it has become a standard in the field of high-end, acoustic bowed instrument amplification. Specially developed for use in louder musical environments, and impressively resistant to feedback, the bridge-mounted STAT microphone is an ideal choice for jazz, fusion, rock or classical performances involving high levels of amplification.

STAT is designed to accurately reproduce the warm sound of the instrument strings during performance, giving depth and body to the lower ones while reproducing the clarity and brightness of the upper ones.

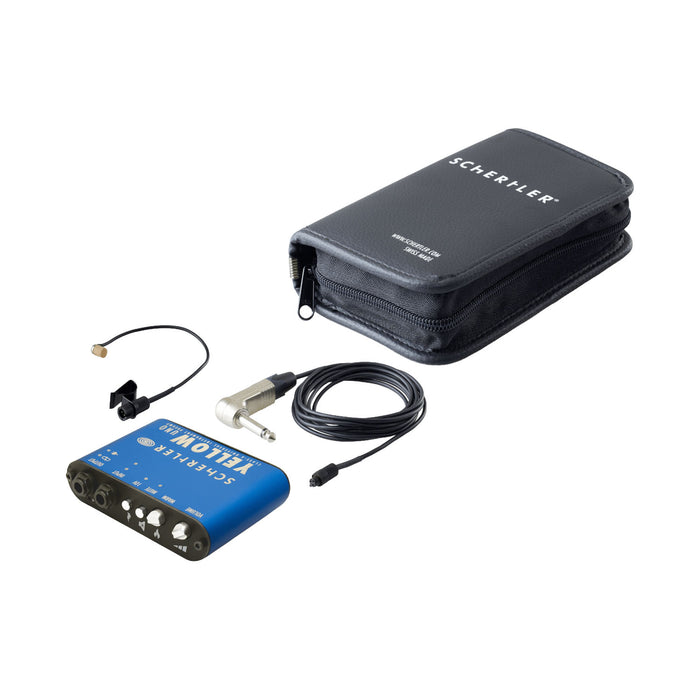

STAT V UNO combines the STAT V pickup for violin and viola with the battery-powered YELLOW UNO preamplifier. The package includes a connection cable and padded bag.

Schertler STAT-V-UNO Specifications

• Transducer type: Electro-static contact microphone
• Output impedance (@ 1 kHz): 2 kΩ
• Frequency Response (@ ±3dB) - filtered: 60 to 12 kHz
• Sensitivity: ca. -20 dBu
• Dynamic range: 70 dB
• Operating voltage: 3 to 10 VDC
• Built in preamp: No
• External preamp: YELLOW UNO
• Contacts: All hard gold plated 0.5 mm
• For fixed installations: Yes
• Removable: Yes
• Connection: Binder - 1/4” jack
• Cable Length: 0.17 m + extra cable 2.25 m
