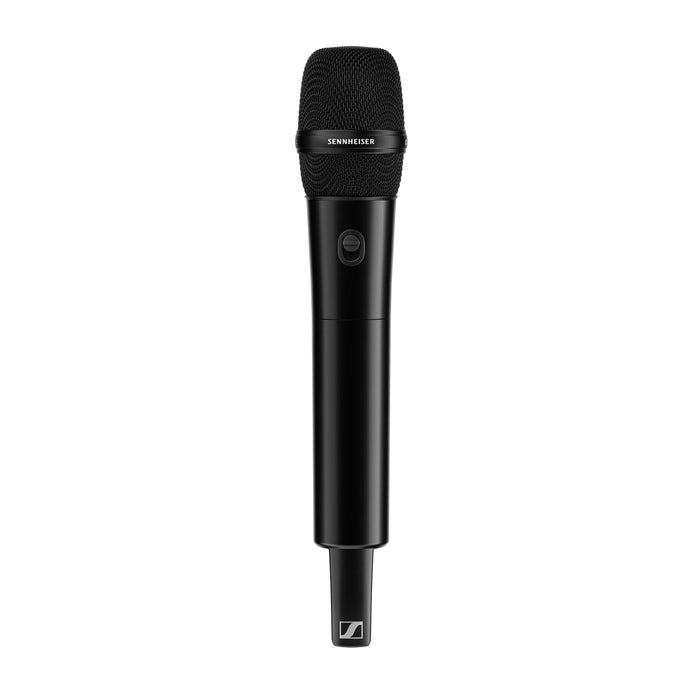

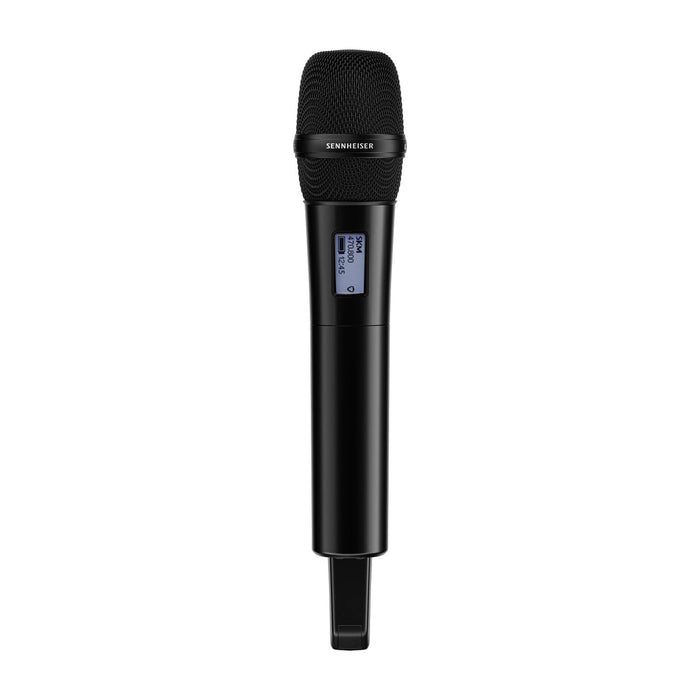

Sennheiser EW-DX SKM-S (S1-10) - Wireless Handheld Transmitter with Switch

Sennheiser EW-DX SKM-S (S1-10)

Digital wireless handheld transmitter with switch compatible with Evolution Wireless Digital systems.

Rugged metal housing with standard capsule interface for a wide range of Sennheiser and Neumann microphone modules. Up to 12 hours of runtime, persistent E-Ink display and charging contacts for in-device charging.

Features

• 138 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
• 10mW fixed RF power for up to 100 m/328 ft of range
• Charging contacts for in-device charging with CHG 70N charger (sold separately)
• Persistent E-Ink display for "always on" information - parameters visible on screen even when taking out batteries
• Up to 12 hours of operation time with rechargeable lithium ion battery BA 70 (sold separately)
• Programmable mute switch (AF Mute, RF Mute, no function)
• Function buttons - control all the transmitter settings directly from the handheld including button lock function
• Digital audio trim
• Test tone generator
• Switchable LED configuration (On/Off)
• Switchable low cut (Off, 30 ,60, 80, 100, 120 Hz)
• Versatile charging options optionally available: CHG 70 N, L 70 USB, LM 6070 Module for L 6000 full rack charging station (Availability in 2023)
• Sennheiser Standard Capsule Interface - compatible with a wide range of Sennheiser and Neumann capsules (sold separately)
• Metal housing
• Worldwide usage (specific frequencies subject to local RF regulations)

Specifications

• Dimensions: 50 x 268 mm (incl. MMD 835 microphone module) 40 x 200 mm (without microphone module)
• Frequency range: 606.200 - 693.800
• Latency (ms): 1.9 ms
• Connection: Wireless
