SPL BiG Studio - Stereo Image Bigger Maker

SPL BiG Studio - Stereo Image Bigger Maker

The SPL BiG [Studio] spectacularly enlarges the stereo image and opens up new creative ways of sound shaping.

BiG [Studio] expands the possibilities of sound shaping with a new tube circuit. The Tube Harmonics control refines the harmonic spectrum of every signal, making it more vivid, detailed and increased in size – bigger than life!

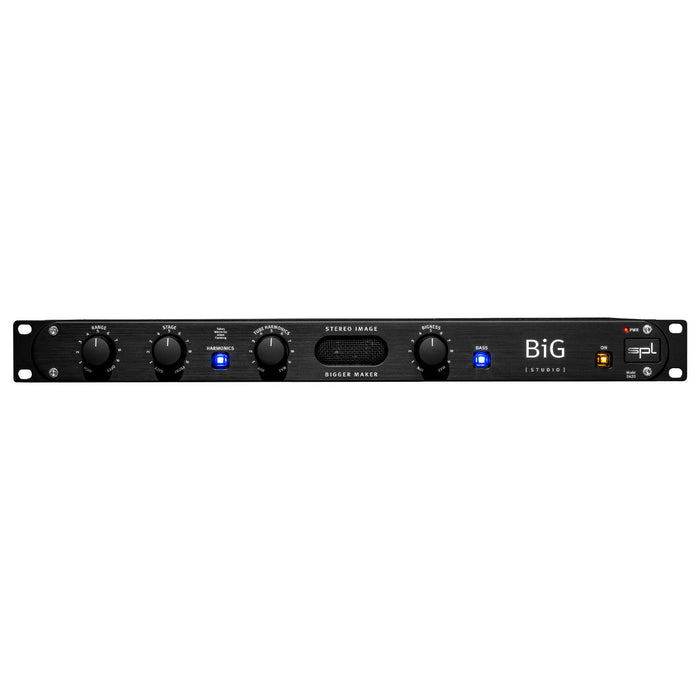

Visually, BiG [Studio] sports the black design of the SPL Studio series.

The internal audio voltage of +/-18V ensures great sound!

SPL BiG Studio Features

• With the Range control, the frequency range which should be processed can be selected.
• With the Stage control, the frequency range previously selected with the Range control can be moved backwards or forwards on the stereo stage.
• The Bigness control adjusts the intensity of the stereo image shaping.
• The Tube Harmonics control adjusts the intensity of the harmonics generated in the tube.
• When the Harmonics switch is activated, the tube circuit which generates harmonics is in the signal path. If this switch flashes, the device is in “warm-up” mode. The tubes are being brought to the optimum operating temperature.
• The bass switch can be used to activate an additional bass boost at the end of the BiG [Studio] processing chain.

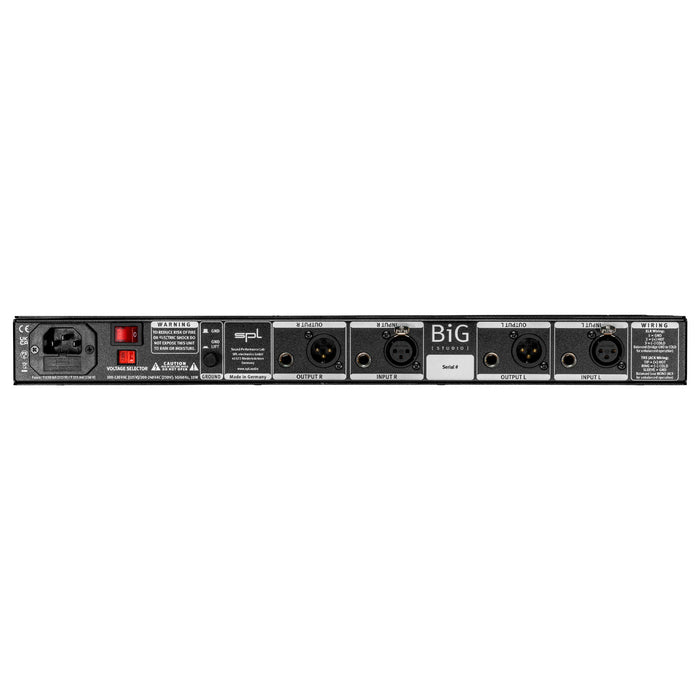

• All inputs and outputs of the BiG [Studio] are equipped with XLR jacks with gold-plated contacts and TRS jacks. The XLR and TRS jacks are connected in parallel. Signal transmission is electronically balanced at a nominal level of 6 +dB.
• The ground switch on the rear panel of the BiG [Studio] can be used to eliminate ground loops by disconnecting the internal ground from the housing ground when the switch is pressed.

SPL BiG Studio Specifications
