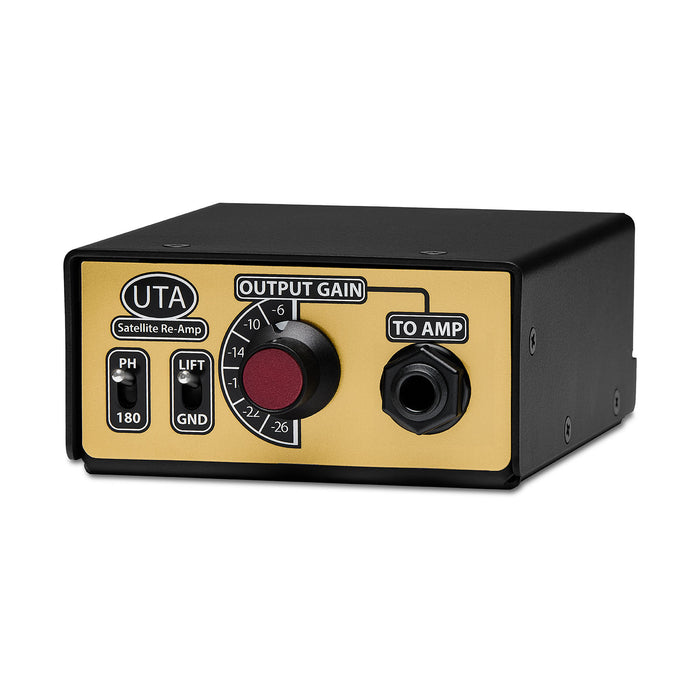

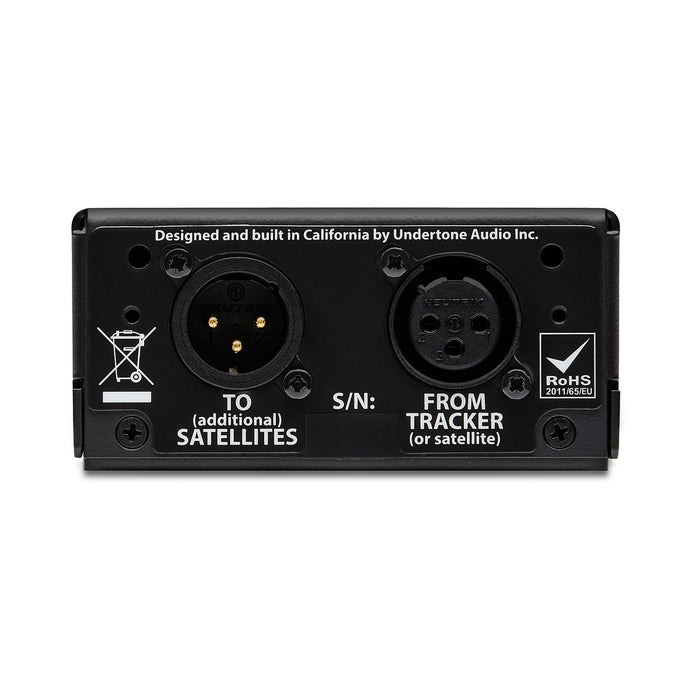

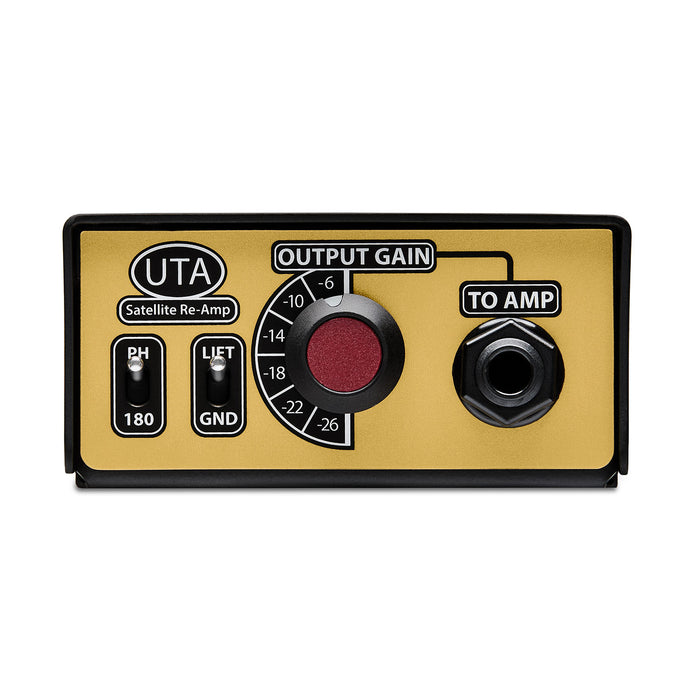

Undertone Audio GB Tracker Satellite Re-Amper

Undertone Audio Satellite Re-Amp

UTA Satellite Features

• Custom transformer designed to interact with your amp exactly like a guitar or bass
• Gain steps that match the GB Tracker
• Use as a standalone re-amp, or alongside the GB Tracker to expand the revolutionary re-amping workflow
• Easily daisy-chain for re-amping to multiple amps
• Ground-lift and phase reverse
• Stylish new V2 look with optional rack mount kit!

UTA GB Tracker Satellite Specifications

• INPUT VOLTAGE: 24V AC (200mA)
• INPUT IMPEDANCE
  • INSTRUMENT INPUT: 1Mohm, 4.7Mohm
  • FROM DAW: 15Kohm
• OUTPUT IMPEDANCE
  • TO AMP: 2Kohm
  • TO DAW: 47ohm
• FREQUENCY RESPONSE
  • “INPUT” to “DAW OUTPUT“: 20Hz - 50KHz 0dB to -1dB
  • “FROM DAW” to “TO AMP”: 20Hz - 40KHz 0dB to -1dB
• MAX LEVEL BEFORE CLIP WITH 600Ω LOAD (TO DAW): +24dBm
• DISTORTION (“INPUT” to “DAW OUTPUT“): <0.02% THD 20Hz-20kHz @+20dBu
• DIMENSIONS: 1.93”(H) X 4”(D) X 3.55”(W)
• WEIGHT: 0.86 Lbs
