Undertone Audio Pyra-Sum
The Ultimate Hybrid Mixing Setup

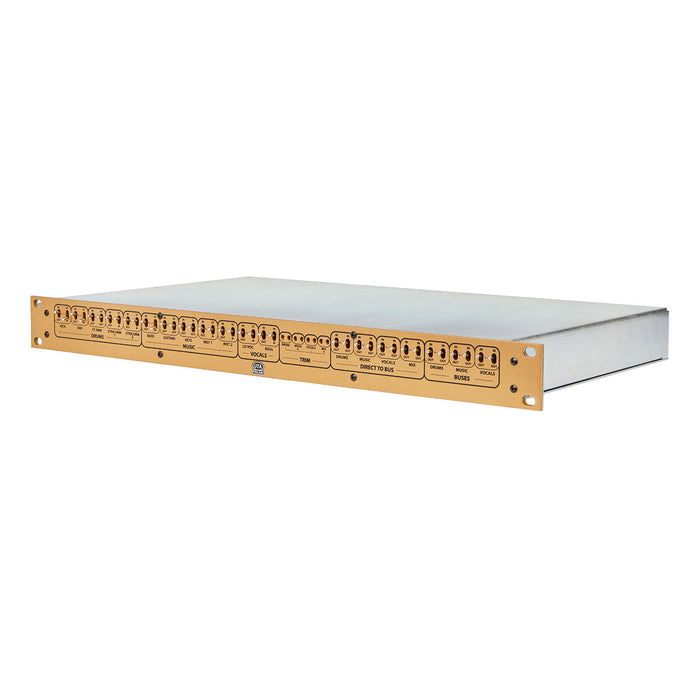

The UTA Pyra-Sum is a passive summing mixer that has what other summing mixers don't: multiple cascading busses. This bussing architecture allows you to truly have the sound and workflow of a large format console but with even more sonic flexibility and in a much smaller format. We've left out any active circuitry, which means that you have total control of the coloration that's added in the makeup gain stages—it also means you'll need to use this with eight of your own preamps. Want a different sound? Swap the preamps. You could use Neve's or API's for that 70s sound. Tube RCA preamps for that 50s sound. UTA preamps for a size and musicality that has never existed before. Or, since the preamps are inserted after each stage of summing, you can mix and match— API's on the drums, UTA preamps on the music, Neve's on the vocals, etc. The sonic possibilities are endless!

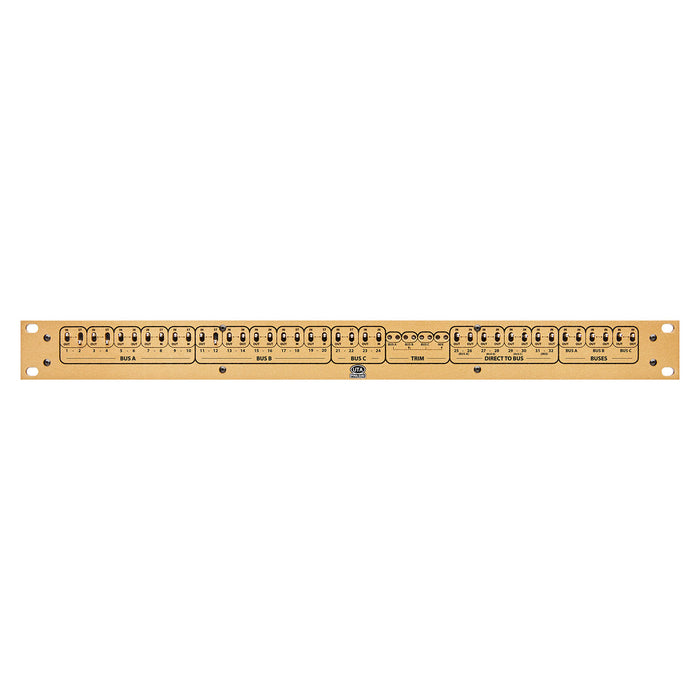

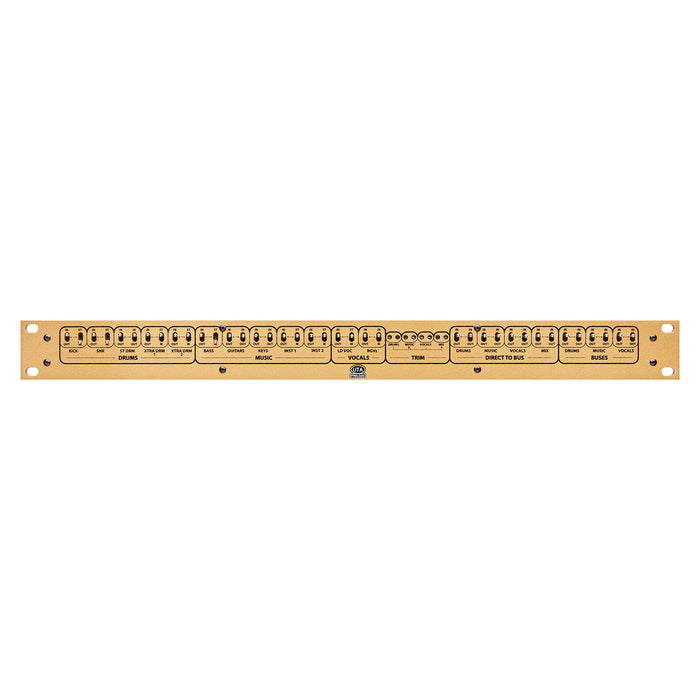

Different Faceplates For Different Applications
There are two different faceplate styles available to choose from at time of purchase. When designing what's best for your setup, the choice is yours.
UTA Pyra-Sum Specifications
- INPUT IMPEDANCE: 10Kohm balanced
- OUTPUT IMPEDANCE: 200ohm balanced
- OUTPUT LEVEL(To Preamps): -35dB
- TRIM RANGE: +/-2dB
