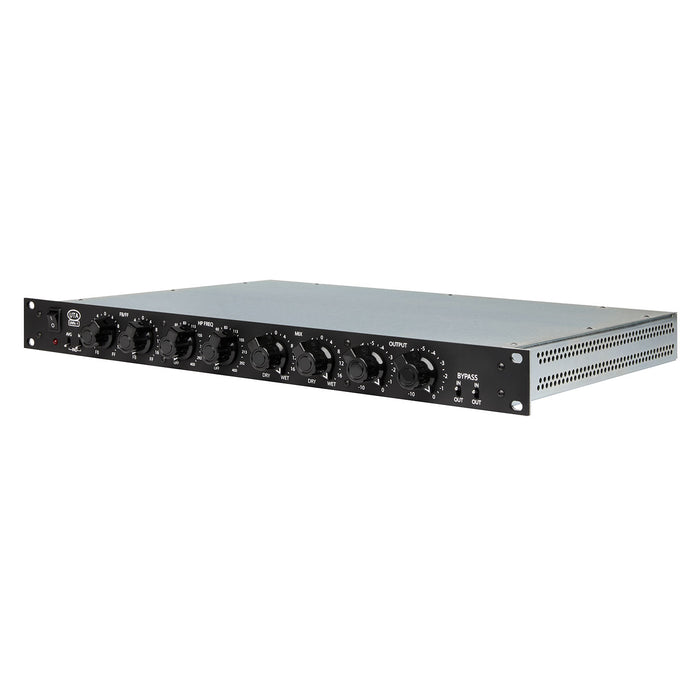

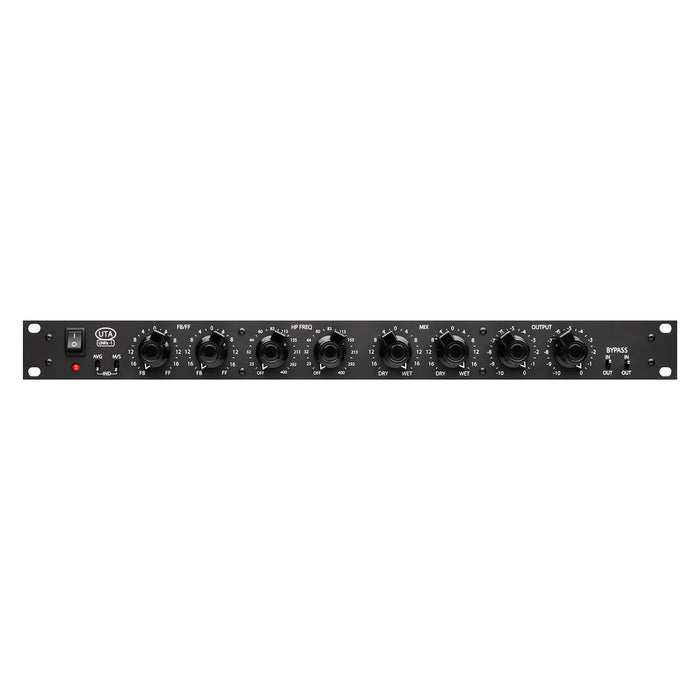

Undertone Audio UNFa-1 Accessory Box

Undertone Audio UNFa-1

UnFairchild...Extended

The UTA UNFa-1 Accessory Box is an add-on to the UnFairchild 670M II vari-mu tube compressor/limiter. It adds a whole new world of flexibility and function to the already versatile recreation of the Fairchild circuit. There were certain features that didn’t make sense to have included in the UnFairchild design because it would have strayed too far from the mission of faithfully recreating the original Fairchild circuit. Being outside the boundaries of the original Fairchild circuit doesn’t make these new features any less desirable. An optional add on product was and is the perfect solution. With these added features, UnFairchild users can have an authentic hardware recreation of the legendary vintage musicality of an original Fairchild WITH a level of control and flexibility that many plugins don’t even offer. It is truly unfair.

Added Features

• Wet/Dry Mix (for parallel compression)
• Feedforward/Feedback Mix
• HP Filtering for Sidechain
• Output Gain Control
• Feedforward Compression in M/S modes
• Averaged Stereo Linking
• Included harness for easy plug and play
• All done with high voltage Class A audio circuits to preserve sonic integrity

UTA UNFa-1 Specifications

• INPUT VOLTAGE: 110-120/220-240 VAC, 60/50 Hz
• MAINS FUSE
  • 110V: T 0.4 A
  • 240V: T 0.2 A
  • MAXIMUM POWER CONSUMPTION: 25 W
• INPUT IMPEDANCE (LINE INPUT): 25K
• OUTPUT IMPEDANCE (LINE OUT): 47Ω
• FREQUENCY RESPONSE (LINE IN/OUT): 10 Hz - 50 kHz +0 /-1 dB
• NOISE FLOOR (LINE IN/OUT): -91 dBu (20 Hz - 20 kHz)
• MAX LEVEL BEFORE CLIP (LINE IN/OUT): +27 dBu (or better)
• DISTORTION (LINE IN/OUT): .005% at +27 dBu
• DIMENSIONS
  • FRONT TO BACK: 12.25”
  • (WITH HEAT SINKS and KNOBS): 14”
  • LEFT TO RIGHT: 17.25”
  • (WITH RACK EARS): 19”
• WEIGHT
  • ACTUAL: 12 lbs
  • SHIPPING: 15.8 lbs
