Void Acoustics Bias D1+

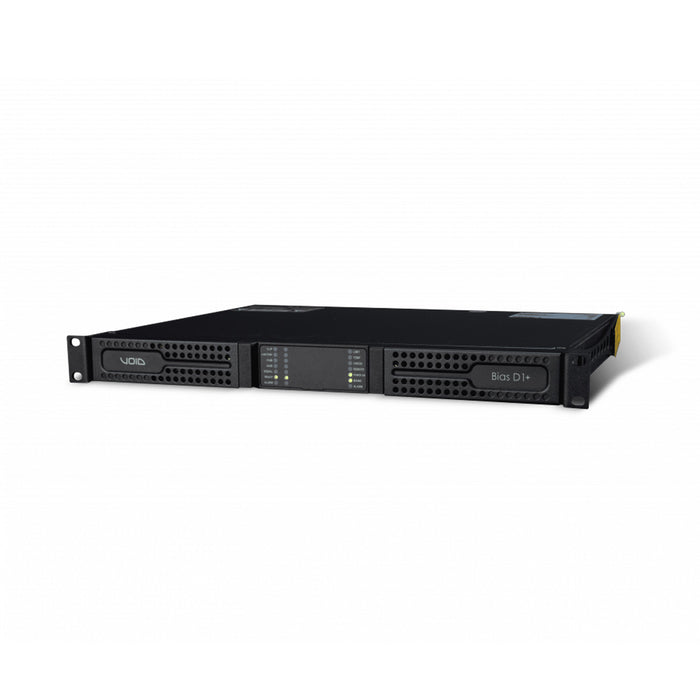

Void Acoustics Bias D1+ Amplifier

Sound Shaping and Limiter Functionality

A fully integrated signal processor with extensive system management features. The front panel contains LED display, providing status feedback that can also be obtained by connecting the amp to a PC and running Armonia Pro Audio Suite software.

Versatile Application, Consistent Performance

Designed to work with lo-Z (from 2 Ω) and 70V/100V distributed lines, any mixed configuration of low and high impedance output loads is possible, making the Bias D1 suitable for all applications in installed sound reinforcement systems.

Void Acoustics Bias D1+ Key Features:

• Easy to set up, versatile to use
• Status feedback provided via front panel LED display or connection to a PC running Armonia Pro Audio Suite™ software.
• Eco-friendly, energy efficient
• Minimal operational costs and carbon footprint
• Fully integrated, state-of-the-art DSP for extensive system management functionality
• Sound shaping and limiter functions
• DSP hardware enables compliance with IEC 60849
• Designed to work with lo-Z (from 2 Ω) and with 70V/100V distributed lines; any mixed configuration of low and high impedance output loads can be attained
• DSP+ versions extend signal routing capabilities with the integration of AES67 digital audio networking architecture

Void Acoustics Bias D1+ Specifications:

• Number of channels: 2
• Output per channel: 1000 W @ 2 Ω, 800 W @ 4 Ω, 800 W @ 8 Ω
• Output bridged: 2000 W @ 4 Ω, 1600 W @ 8 Ω
• Height: 44.5 mm (1.75 “)
• Width: 483 mm (19 “)
• Depth: 358 mm (14.1 “)
• Weight: 7 kg (15.4 lb)
• IP Rating: IP-20
