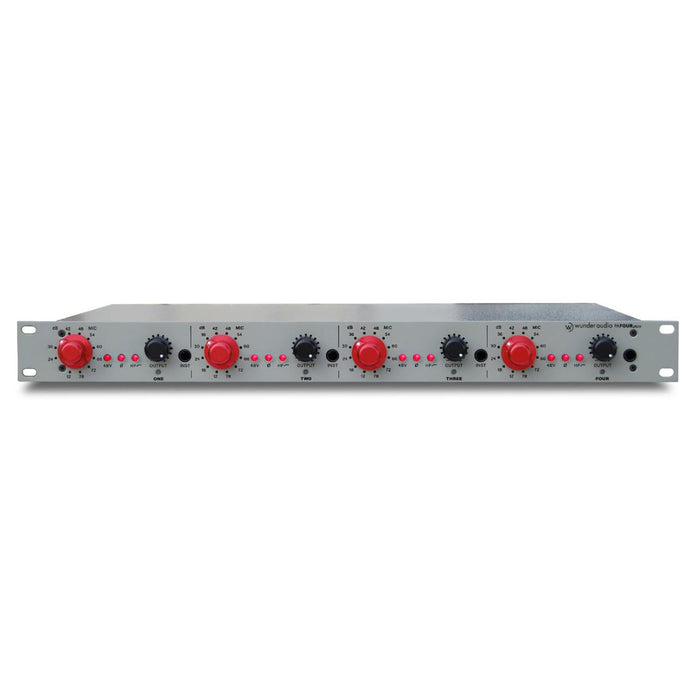

Wunder Audio PAFOUR Plus - Rackmount 4 Channel Mic Pre (Requires PSU & DC Cable)
£2,400.00 ex. vat
Wunder Audio PAFOUR Plus
The Wunder Audio PAFOUR Plus is a professional 4 channel mic pre that features a new Output Stage added just before Output Transformer. The PAFOURplus is a fully Class-A discrete 1970's-style mic-pre utilizing the exact mic-pre circuit as the PEQ2. The design employs proprietary, custom-designed mic, and output transformers. It is no secret that the huge sound is due to the make-up of the Mu-Metal transformers. In the PAFOURplus, you get four channels of the Wunder Audio sound in one unit!
The PAFOURplus cuts no corners. We have included the same exact transformers from the PEQ2. The mere size of these transformers is unprecedented in a 4-channel mic pre unit. The Core material was made in 1970 and yields a fat vintage sound with virtually no phase shift. The low turn ratio of the windings (1:1.4) yields a mic pre that can handle very high level with no need for a pad.
The Instrument Input circuit includes the complete Line Input stage of the PEQ2R so you can utilize the now famous way of recording, for example DI Bass Guitar, directly into the Line Input of the Wunder, instead of using a direct box approach into the mic pre. This line Input stage has a huge 60 dB of input gain! No other multi-channel mic pre incorporates this Line Input approach with this much gain.
PAFOUR Plus Features
- Discrete Active HP Filter.
- Output fader.
- Improved Gain switches, over 3 x the gold contact area per switch position.
- Light Pipe Pushbuttons replaces small C&K toggle switches.
- LED metering with Green signal indicator and Red clip light.
- Gain knob has one extra position to achieve -6db less gain (-24dB).
- Redesigned Enclosure with thicker gauge metal and tack welded with better RF protection.
- Thicker faceplate.
- 1% Metal Film resistors for lower noise floor and better matching from channel to channel.
- Sturdier amp compensation or RF rejection capacitors
- New PCB with revised and optimized component layout with beefier traces.
- RF filtering
