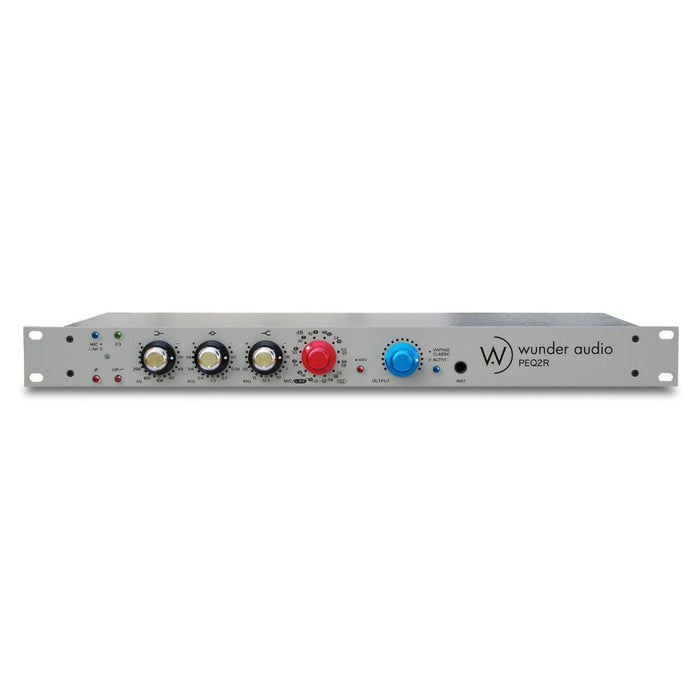

Wunder Audio PEQ2R - Rackmount Mic Pre & EQ (Requires PSU & DC Cable)

Wunder Audio PEQ2R - Rackmount Mic Pre/EQ

The Wunder Audio PEQ2R mic-pre/equalizer is the 19″ rack mount version of the PEQ2. It has a conductive plastic logarithmic taper output level potentiometer, which acts as an output fader, a 48V phantom power switch and a quarter inch instrument input jack. Wunder have taken the PEQ1R and enhanced it to make it even better!

*requires Black Box or Blue Box PSU and DC cable, which are sold separately

Wunder Audio PEQ2R Features

• NEW output stage added to the tail end, just before output transformer, for greater maximum gain.
• Upgraded “NICO” transformers (Nickle/Iron/Cobalt).
• Improved Gain switches with over 3 x the gold contact area per switch position.
• Improved EQ switches with over 3 x the gold contact area per switch position.
• Light pipe pushbuttons, as used in the Wunderbar Console.
• Discrete, active high pass filter.
• LED metering with Green signal indicator and Red clip light.
• 1/4″ instrument input is selectable from Active or Classic Input on PEQ2R.
• Gain knob now has one extra counterclockwise position to achieve -6db less gain (-24dB instead of -18dB
• like on old units).
• Totally redesigned enclosure with thicker gauge metal for superior shielding and better RF protection.
• hicker faceplate on PEQ2R.
• 1% Metal Film resistors for lower noise floor and better matching from channel to channel.
• Sturdier amp compensation or RF rejection capacitors.
• New PCB with revised and optimized component layout with beefier traces.
• RF filtering.
