Funktion One Resolution 2 Loudspeaker NL4 - Used (Ex Hire)

£3,732.00 inc. vat
£3,110.00 ex. vat
Please contact us for availability.

Funktion One Resolution 2 Loudspeaker NL4 - Used (Ex Hire)

The Function One Resolution 2 is an entirely horn loaded, surprisingly compact, full range loudspeaker enclosure. The driver complement comprises a 15" for bass, an 8" for midrange and a 1" for high frequencies. This is an Ex-Hire product.

Funktion One’s waveguide and driver technology produces clear, involving and powerful sound. The R2’s unique combination of size, high efficiency and sonic excellence make it ideally suited to a wide range of uses. This loudspeaker resolves the requirement for quality, response and level from a small source.

Resolution 2 systems can be supplemented with additional Funktion One bass including Infrabass, F218s and F121s. A slightly larger horizontal version (R2U) is available for installation in venues with low ceiling heights.

Funktion One Resolution 2 Features

  • Full range, stand alone enclosure
  • Fully horn loaded for high efficiency
  • Three-way bi-amped (passive HF)
  • Funktion One designed drivers
  • Complete range of flying and mounting options
  • Fitted with M10 flypoints
  • Optional Wheelboard
  • Optional scrim for discrete appearance

Funktion One Resolution 2 Specifications

  • Drivers: 15", 8", 1"
  • Operating Band: 28 - 250Hz, 250 - 6k5Hz, 6k5Hz - up
  • Sensitivity (1W at 1m): 102dB, 106db, 107db
  • Power (rms): 400W, 200W, 50W
  • Nominal Impedance: 8 Ohm, 12 Ohm, 12 Ohm
  • Frequency Response: ± 3dB: 50Hz - 18kHz
  • Weight (without wheelboard): 48kg (106lbs)
  • Nominal Dispersion: 50° Horizontal x 25° Vertical

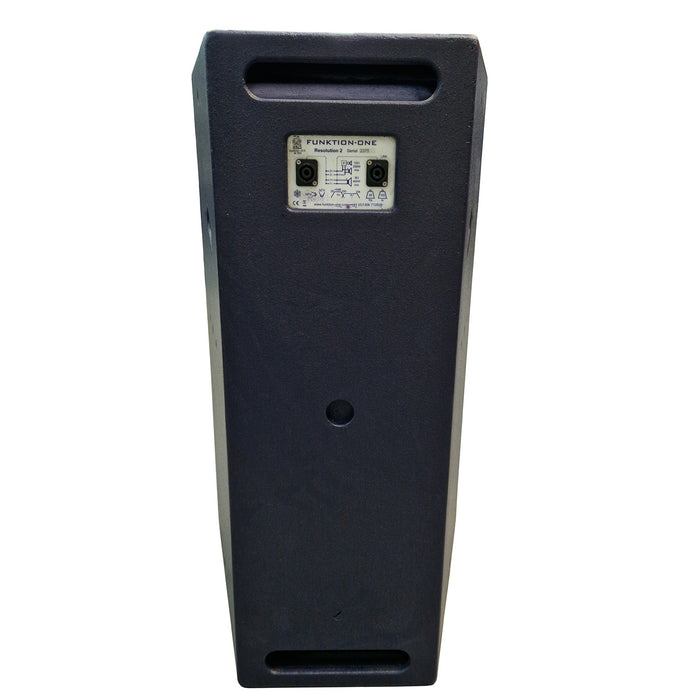

  • Connectors: 2 x Speakon NL4
